Antenna, Long-Term Evolution 2 (LTE2): Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the instrument panel cover. Refer to PAD, INSTRUMENT PANEL, REMOVAL .

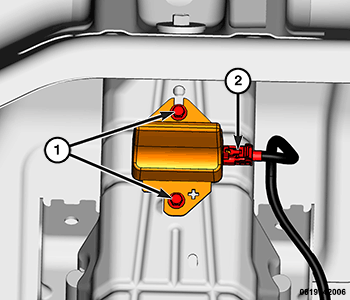

    GC0186645Courtesy of CHRYSLER GROUP, LLC
  3. Position the instrument panel wire harness out of the way.
  4. Remove the two fasteners (1) securing the Long Term Evolution 2 (LTE2) antenna to the instrument panel carrier.
  5. Disconnect the wire harness connector (2) and remove the LTE2 antenna from the instrument panel.
