Audio/Video/Entertainment/Connectivity (Service Information): Radio: Removal

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the instrument panel center bezel from the instrument panel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL .

Courtesy of CHRYSLER GROUP, LLC

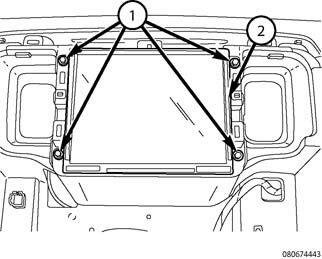

Remove the fasteners (1) securing the radio (2) to the instrument panel.
Position the radio out far enough to access the back of the radio.

Courtesy of CHRYSLER GROUP, LLC

CAUTION:
Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
Disconnect the antenna (2) and wire harness connectors (1).
Disconnect the USB connectors (3).
Remove the radio from the instrument panel.
