Bezel, Instrument Panel, Center: Removal

CAUTION:

DO NOT pry against the face of the radio, or passenger side/ignition switch bezel applique surfaces. Only pry on the OUTER perimeter of the bezel.

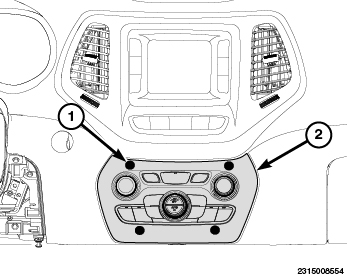

Courtesy of CHRYSLER GROUP, LLC

Using a trim stick or equivalent, separate the retaining clips (1) and remove the Integrated Center Stack (ICS) (2).
Disconnect the ICS wire harness connector.

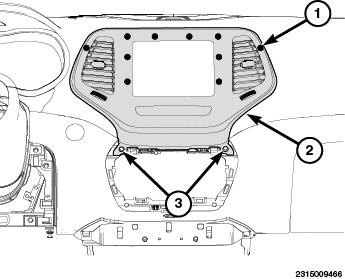

Courtesy of CHRYSLER GROUP, LLC
Remove the fasteners (3).
Using a trim stick or equivalent, release the retaining clips (1) and remove the center bezel (2).
Disconnect the wire harness connector.
