Console, Floor: Removal
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Unclip the shifter bezel. Refer to BEZEL, SHIFTER, REMOVAL .NOTE:
Do not remove the shifter bezel, as it will fit through the opening once the bezel has been removed.
- Using a trim stick or equivalent, remove the front trim (3) covering the console fasteners.

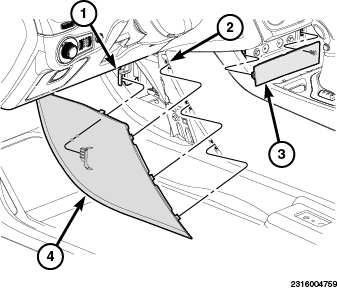

- Accessing from the front of the floor console and using a trim stick, disengage the retaining tabs for the front gap hiders (2) and remove the gap hiders (4).

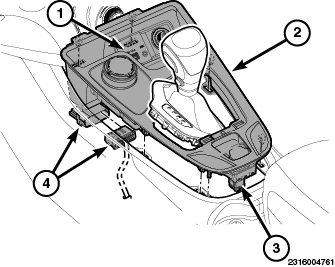

- Using a (special tool #C-4755, Trim Stick) or equivalent, separate the console bezel (2) and disconnect the wire harness connectors.
- Position the seat fully forward.

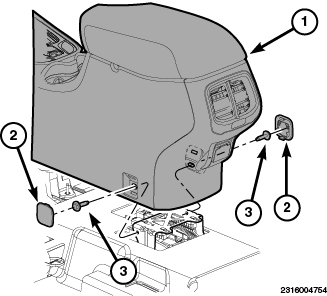

- Using a small pick/pry tool or equivalent, remove the fastener covers (2) located near the lower rear of the console. Remove the fasteners (3) behind the covers.
- Using small pick/pry tool or equivalent, disengage the retaining tabs/clips securing the switch pod to the instrument panel.

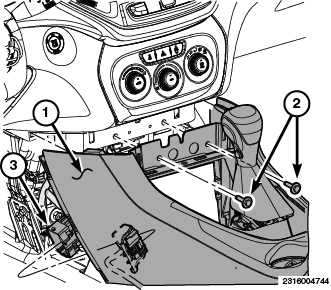

- Remove the fasteners (2) from the floor console (1).
- Disconnect the wire harness connectors (3) from the floor console (1).

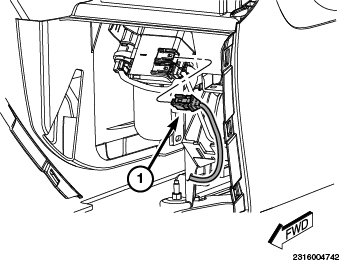

- Disconnect the wire harness connector(s) (1) from the rear of the floor console.
- Lift the console up at the rear and remove from the vehicle.
