Bezel, Shifter: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.

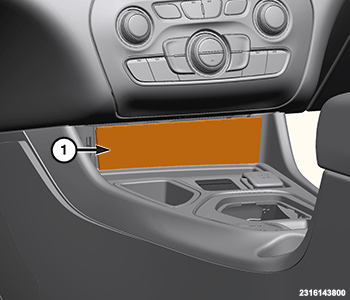

    GC0187104Courtesy of CHRYSLER GROUP, LLC
  2. Using a trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the console closeout (1).
  3. Remove the shifter knob. Refer to SHIFTER, FLOOR CONSOLE, REMOVAL .

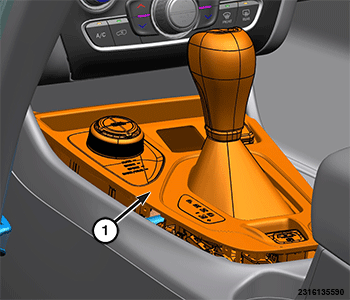

    GC0186858Courtesy of CHRYSLER GROUP, LLC
  4. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, pry up on bezel (1). Disconnect the wire harness connector(s) and remove.
