Linkage, Wiper Arm: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove both front wiper arms. Refer to ARM, WIPER, REMOVAL .
  3. Remove the cowl cover panel from over the front wiper module. Refer to COVER, COWL PANEL, REMOVAL .

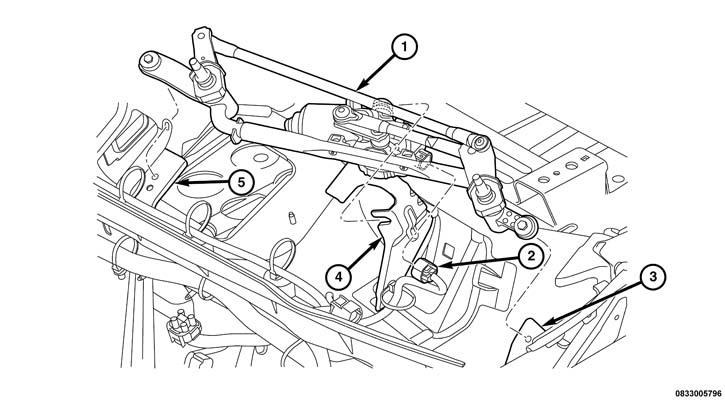

    GC0160134Courtesy of CHRYSLER GROUP, LLC
  4. Disconnect the wire harness connector (2) from the front wiper motor.
  5. Remove the fasteners at the ends, from the bracket (3 and 5).
  6. Pull the front wiper linkage (1) inboard far enough to disengage the rubber isolator from the slotted bracket (4).
  7. Remove the front wiper linkage from the cowl plenum.
