Cover, Cowl Panel: Removal

Courtesy of CHRYSLER GROUP, LLC

COWL PANEL COVER

1. Release hood latch and open hood.

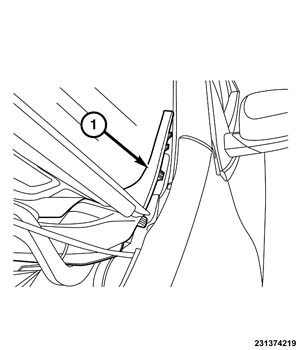

2. Remove the fender to cowl mucket (1) by pulling up at the end of the fender to cowl mucket to cowl panel cover joint and then pulling the fender to cowl mucket out of the fender.
3. Remove the driver side wiper panel by pulling up on the panel.
4. Remove windshield wiper arms. Refer to ARM, WIPER, REMOVAL .

   Courtesy of CHRYSLER GROUP, LLC

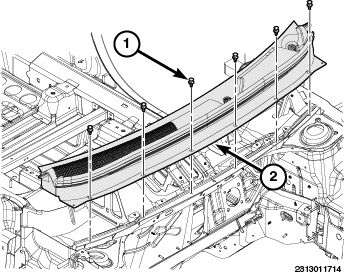

5. With the use of (special tool #C-4755, Trim Stick) or equivalent, remove the push-pins (1) attaching cowl panel cover (2) to the cowl plenum extension.

   Courtesy of CHRYSLER GROUP, LLC

   CAUTION:

   Use care when removing the cowl screen from the retainer on the windshield. If the retainer on the windshield is broken/damaged the windshield will require replacement.

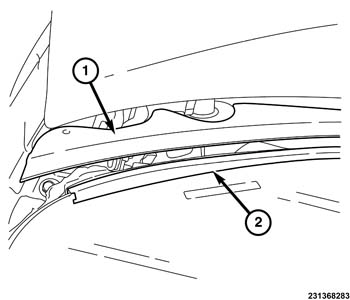

6. Starting at the driver side pull up on the back edge of the cowl panel cover (1) and work cross vehicle to release the tab from the backside of the cowl panel from the groove in the lower windshield channel (2).
7. Remove cowl panel cover (1) from vehicle.

Courtesy of CHRYSLER GROUP, LLC

COWL PANEL PLENUM

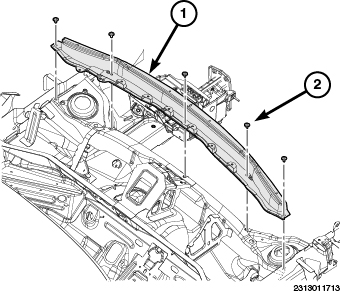

1. Remove the fasteners (2) and remove the panel plenum (1).
