Removal And Installation

REMOVAL

1. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

2. Remove the fastener (1a) and the belt tensioner (1b).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

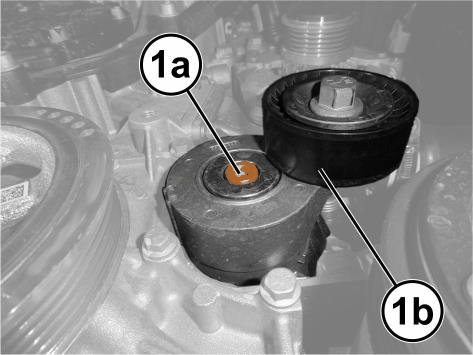

1. Position the belt tensioner (1a) and tighten the fastener (1b) to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
2. Visually inspect the serpentine belt to pulley alignment.
3. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION  .
4. Start the engine and allow to run at idle momentarily. Shut the engine off and reinspect the belt alignment.
