Removal And Installation

REMOVAL

1. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .

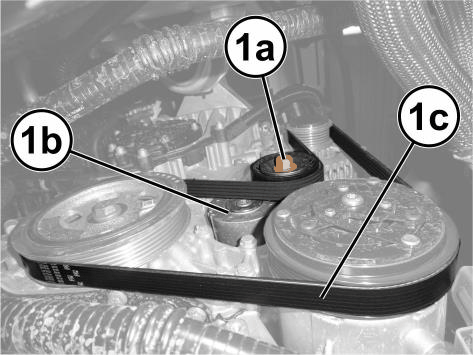

   Fig 1: Accessory Drive Belt Routing

   Courtesy of CHRYSLER GROUP, LLC
2. Using a suitable tool, rotate the bolt (1a) on the belt tensioner (1b) to release the tension, and remove the serpentine belt (1c).

INSTALLATION

1. Inspect the serpentine belt and pulleys for damage.
2. Rotate the belt tensioner and install the serpentine belt.
3. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
