Removal And Installation

REMOVAL

1. Remove the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

   NOTE:

   The rear crankshaft oil seal is destroyed when it is removed.

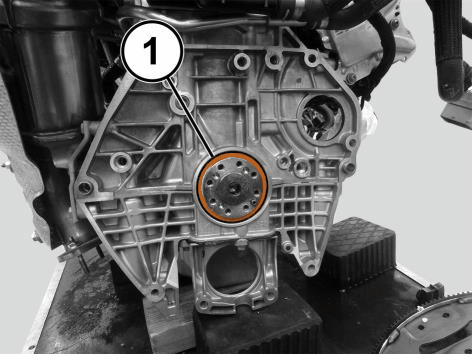

2. Remove the rear crankshaft oil seal (1).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

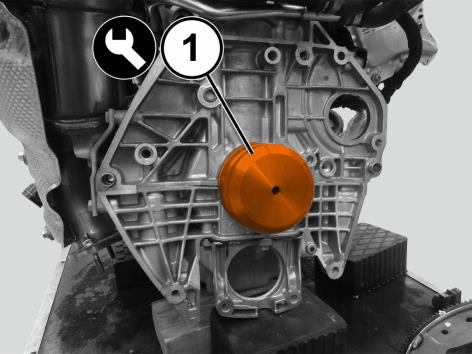

1. Use the (Special Tool No. 2031400091, Installer, Crank Seal - Rear) (1) to install the rear crankshaft oil seal.
2. Install the flexplate. Refer to FLEXPLATE, REMOVAL AND INSTALLATION  .
