Turbocharger Oil Supply Pipe

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
3. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
4. Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
5. Remove the turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

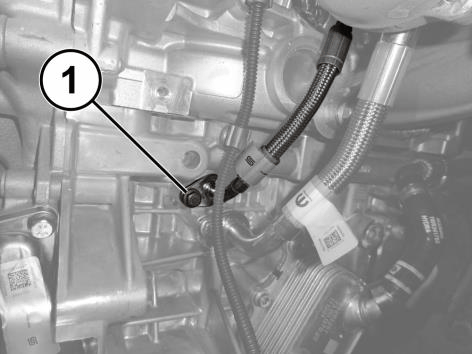

6. Remove the bolt (1) and remove the turbocharger oil supply pipe from the crankcase.

   Courtesy of CHRYSLER GROUP, LLC

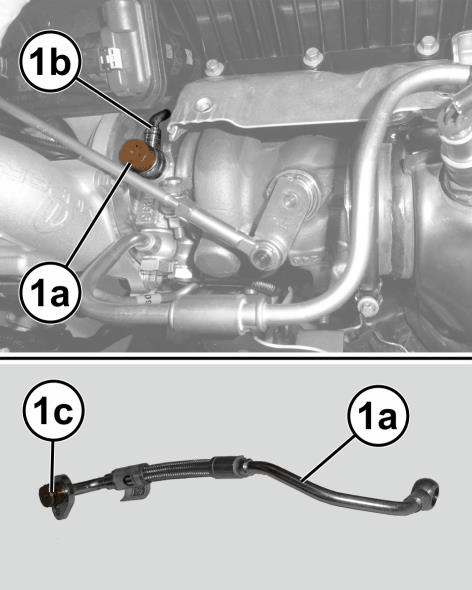

7. Remove the union bolt (1a) securing the turbocharger oil supply pipe (1b) to the turbocharger.
8. Remove the turbocharger oil supply pipe (1a) complete with O-ring (1c).

INSTALLATION

Courtesy of CHRYSLER GROUP, LLC

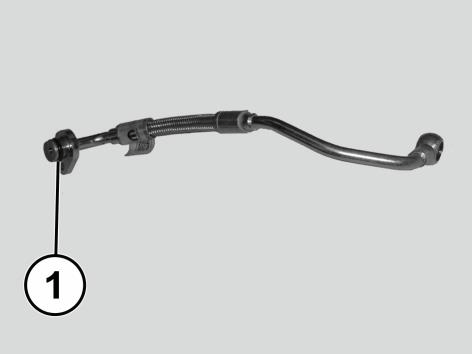

1. Install a NEW  O-ring (1) onto the turbocharger oil supply pipe.
2. Route the turbocharger oil supply pipe between the turbocharger and crankcase.
3. Install the turbocharger oil supply pipe into the engine block and securely tighten the bolt.
4. Install the turbocharger oil supply pipe to the turbocharger and tighten the union bolt to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
   NOTE:

   Any movement of more than 3 degrees, at the pipe ends, will damage the end seals and may need to be replaced.

5. Install the turbocharger heat shield. Refer to TURBOCHARGER, REMOVAL AND INSTALLATION  .
6. Install the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
7. Install the generator. Refer to GENERATOR, REMOVAL AND INSTALLATION .
8. Connect the negative battery cable.
