Air Outlet Pipe From Turbocharger To Throttle Body

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
3. Remove the turbocharger air inlet hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

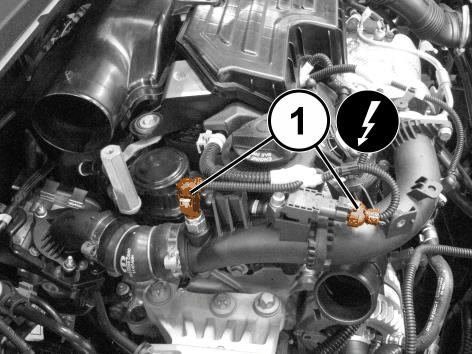

4. Disconnect the electrical connections (1) from the air pressure sensor and the air temperature sensor.

   Courtesy of CHRYSLER GROUP, LLC

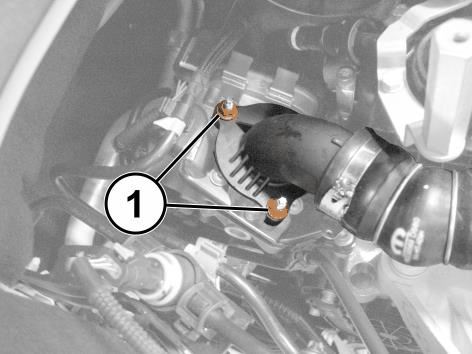

5. Remove the nuts (1) and disconnect the turbocharger air outlet pipe from the throttle body.

   Courtesy of CHRYSLER GROUP, LLC

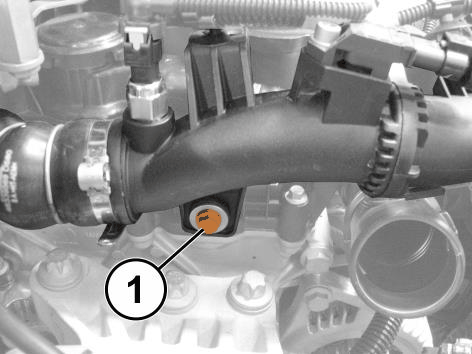

6. Remove the bolt (1) securing the turbocharger air outlet pipe to the cylinder head cover.

   Courtesy of CHRYSLER GROUP, LLC

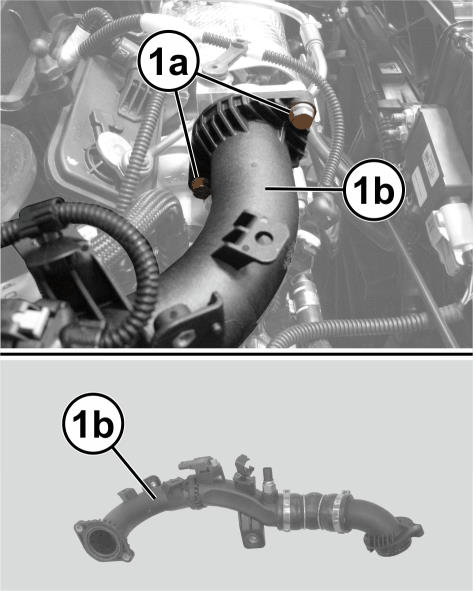

7. Remove the bolts (1a) and the turbocharger air outlet pipe (1b).
8. If required, remove the Intake Air Temperature (IAT) sensor from the turbocharger air outlet pipe. Refer to SENSOR, AIR TEMPERATURE, INTAKE, REMOVAL AND INSTALLATION .
9. If required, remove the turbo boost pressure sensor from the turbocharger air outlet pipe. Refer to SENSOR, TURBO BOOST PRESSURE, REMOVAL AND INSTALLATION  .

INSTALLATION

1. If removed, install the turbo boost pressure sensor to the turbocharger air outlet pipe. Refer to SENSOR, TURBO BOOST PRESSURE, REMOVAL AND INSTALLATION  .
2. If removed, install the Intake Air Temperature (IAT) sensor to the turbocharger air outlet pipe. Refer to SENSOR, AIR TEMPERATURE, INTAKE, REMOVAL AND INSTALLATION .
3. Install the turbocharger air outlet pipe and securely tighten the bolts and nuts.
4. Connect and lock the electrical connections to the air pressure sensor and air temperature sensors.
5. Install the turbocharger air inlet hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION  .
6. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION  .
7. Connect the negative battery cable.
