Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
4. Remove the front right splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

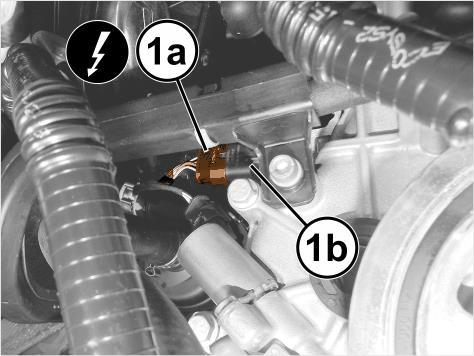

5. Disconnect the electrical connection (1a) from the oil pressure sensor (1b).

   Courtesy of CHRYSLER GROUP, LLC

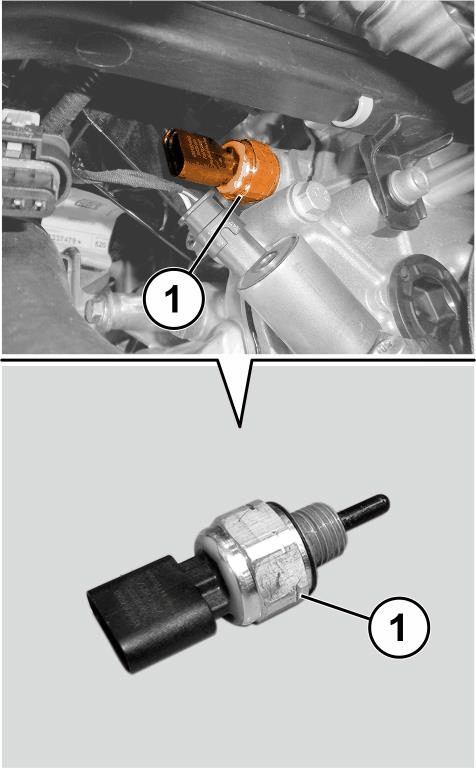

6. Remove the oil pressure sensor (1).

INSTALLATION

1. Install the oil pressure sensor and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
2. Connect the electrical connection to the oil pressure sensor.
3. Install the front right splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL AND INSTALLATION .
4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
5. Remove the support and lower the vehicle.
6. Connect the negative battery cable.
