Engine Oil Pump

GC0189001Courtesy of CHRYSLER GROUP, LLC

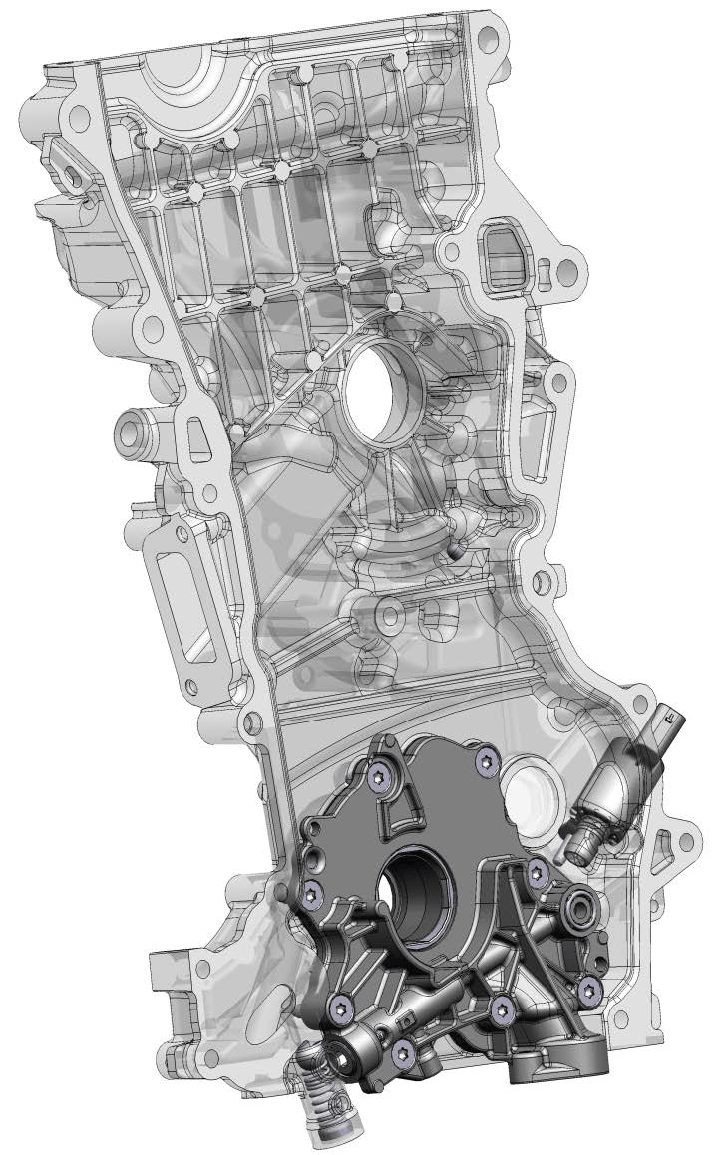

The engine oil pump is integrated into the front timing cover. "Integrated" here means that the timing cover forms part of the outer casing of the oil pump.

GC0188709Courtesy of CHRYSLER GROUP, LLC

Removal and installation of the engine oil pump requires timing cover removal and installation. Refer to COVER(S), ENGINE TIMING, REMOVAL AND INSTALLATION  .
