Windage Tray

REMOVAL

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION  .
3. Remove the oil pump pick-up. Refer to PICK-UP, OIL PUMP, REMOVAL AND INSTALLATION  .

   Courtesy of CHRYSLER GROUP, LLC

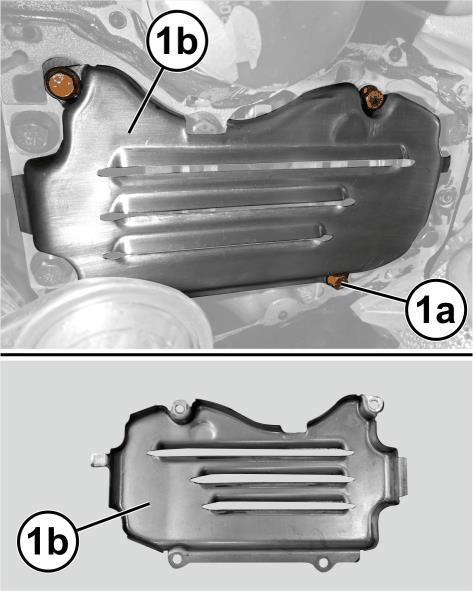

4. Remove the bolts (1a) and remove the windage tray (1b).

INSTALLATION

1. Install the windage tray and tighten the bolts to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
2. Install the oil pump pick-up. Refer to PICK-UP, OIL PUMP, REMOVAL AND INSTALLATION  .
3. Install the oil pan. Refer to PAN, OIL, REMOVAL AND INSTALLATION  .
4. If removed, install the oil filter and fill the engine crankcase with the proper oil to the correct level. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
5. Remove the support and lower the vehicle.
