Fascia, Front: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable(s). Refer to NEGATIVE CABLE .

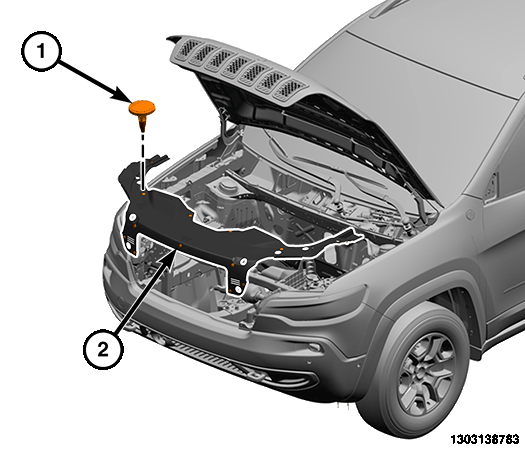

Remove the push pin fasteners (1) and remove the radiator closeout panel (1).

Courtesy of CHRYSLER GROUP, LLC
Remove the belly pan. Refer to BELLY PAN, REMOVAL .

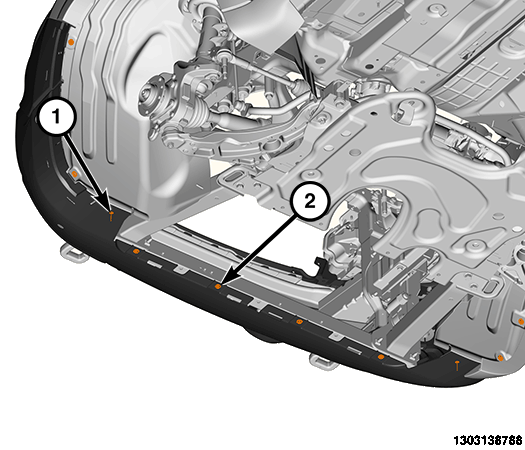

Remove the two rivets (1).
Remove the four lower support fasteners (2).

Courtesy of CHRYSLER GROUP, LLC

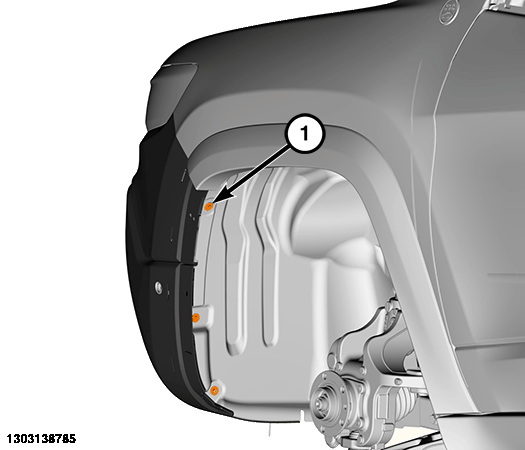

Remove the three screws (1) and position aside the wheelhouse splash shields.

Courtesy of CHRYSLER GROUP, LLC

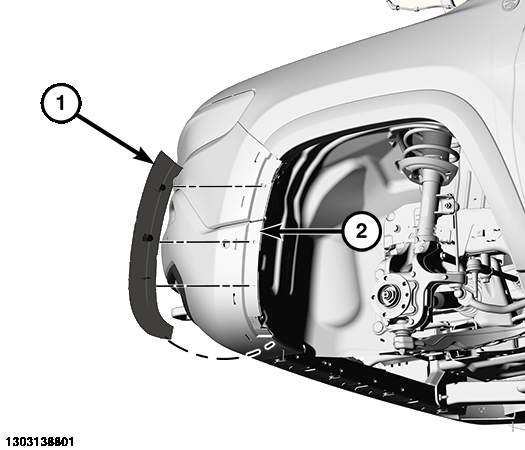

From inside the wheel well, release the clips and remove the front flare moldings (1).

Courtesy of CHRYSLER GROUP, LLC

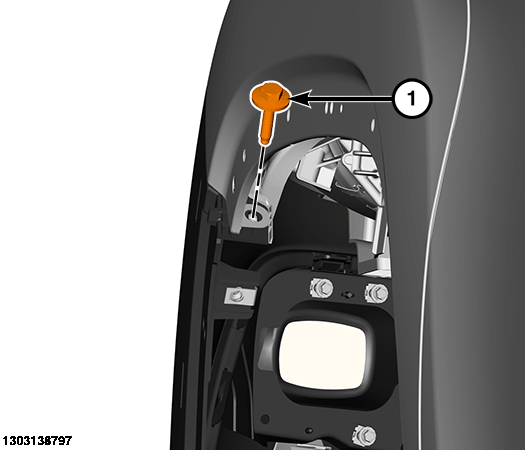

Remove the fasteners (1) attaching the sides of the fascia to the fenders.

Courtesy of CHRYSLER GROUP, LLC

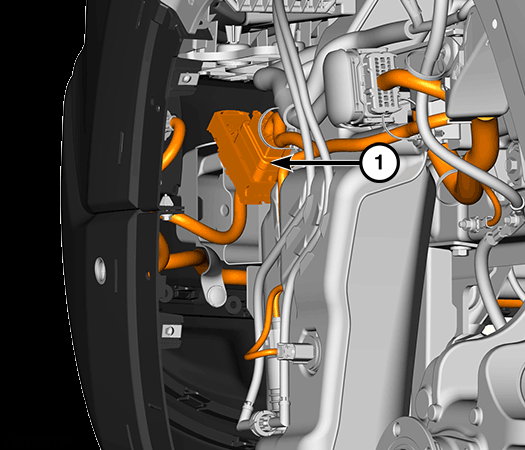

Disconnect the wire harness connector (1).

Courtesy of CHRYSLER GROUP, LLC

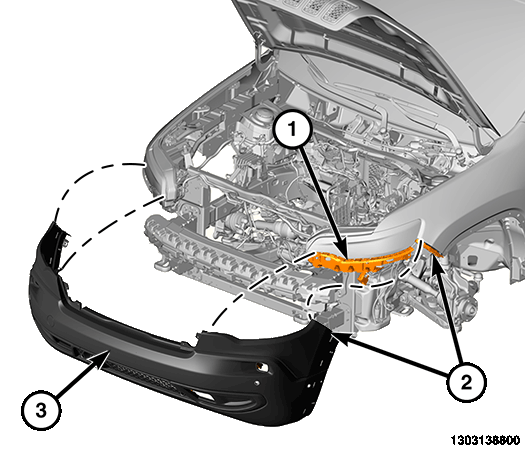

Carefully pull out on the upper and lower fascia sides to release the fascia retaining tabs at the fender (2) and below the headlight (1). Repeat on the opposite side.
Remove the fascia (3) from the vehicle
