Belly Pan: Removal

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
    NOTE:

    There are several different belly pans depending on engine and drivetrain options. Some may have a fewer number of fasteners but they are all removed by the same procedure.

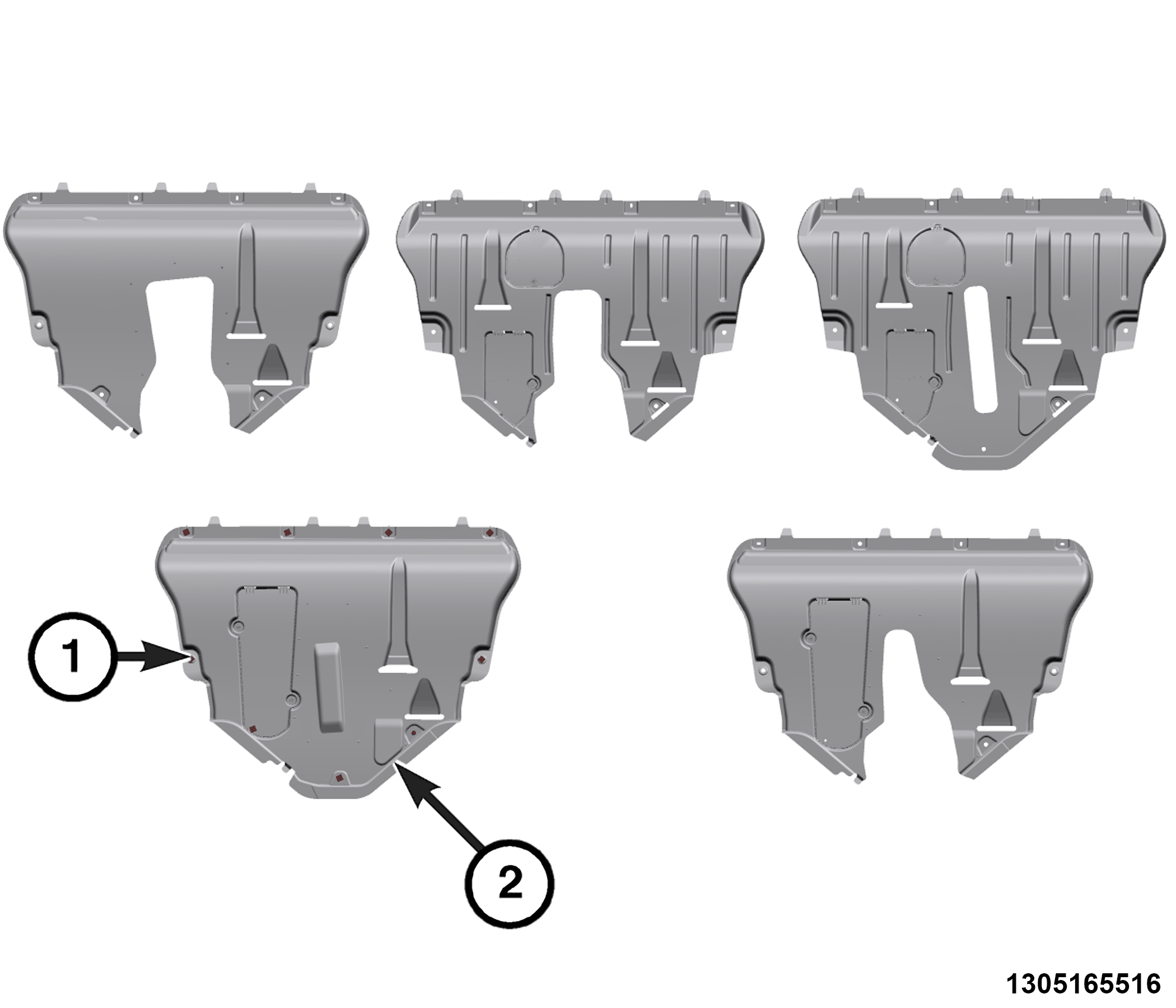

    GC0192247Courtesy of CHRYSLER GROUP, LLC
  2. Remove the fasteners (1) securing the engine belly pan (2).
  3. Remove the engine belly pan (2) from the underside of the vehicle.
