Unit, Front Lamp: Removal

NOTE:

Left side shown in illustration, right side similar.

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the appropriate side of the front fascia and position aside. Refer to FASCIA, FRONT, REMOVAL .
NOTE:
It is not necessary to remove the front fascia when servicing the front lamp unit.

Courtesy of CHRYSLER GROUP, LLC

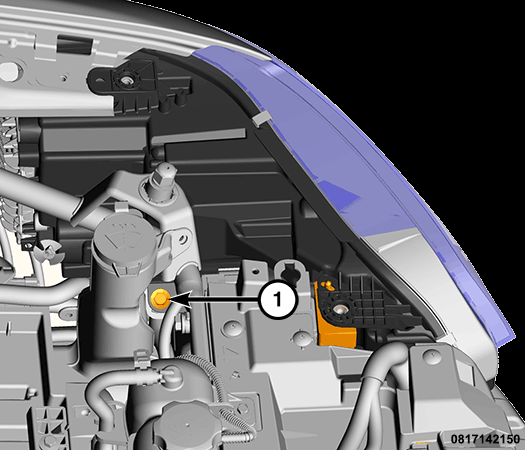

Remove the inner support fastener (1).

Courtesy of CHRYSLER GROUP, LLC

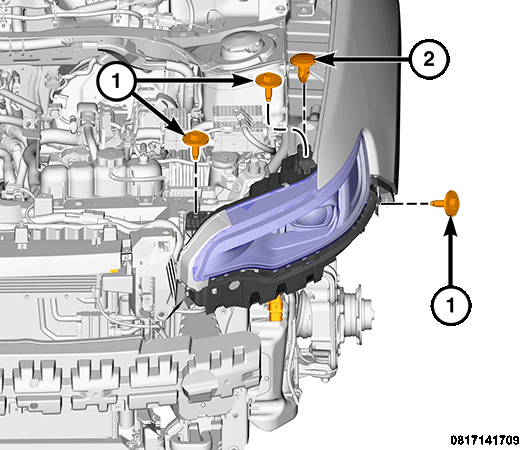

Remove the remaining fasteners (1, 2).

Courtesy of CHRYSLER GROUP, LLC

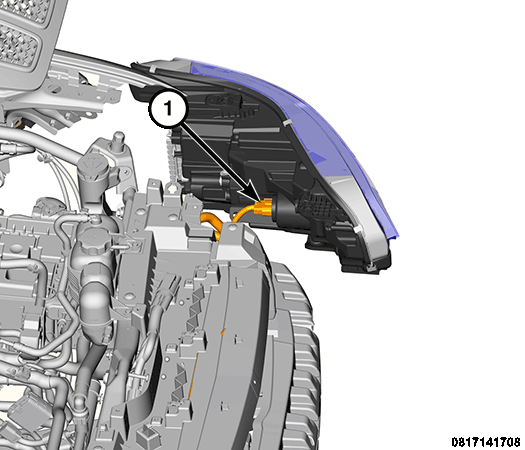

Remove the front lamp unit and disconnect the wire harness connectors (1).
