Lamp, Fog: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Partially remove the front wheelhouse splash shield to gain access to the back of the fog lamp assembly. Refer to REMOVAL .

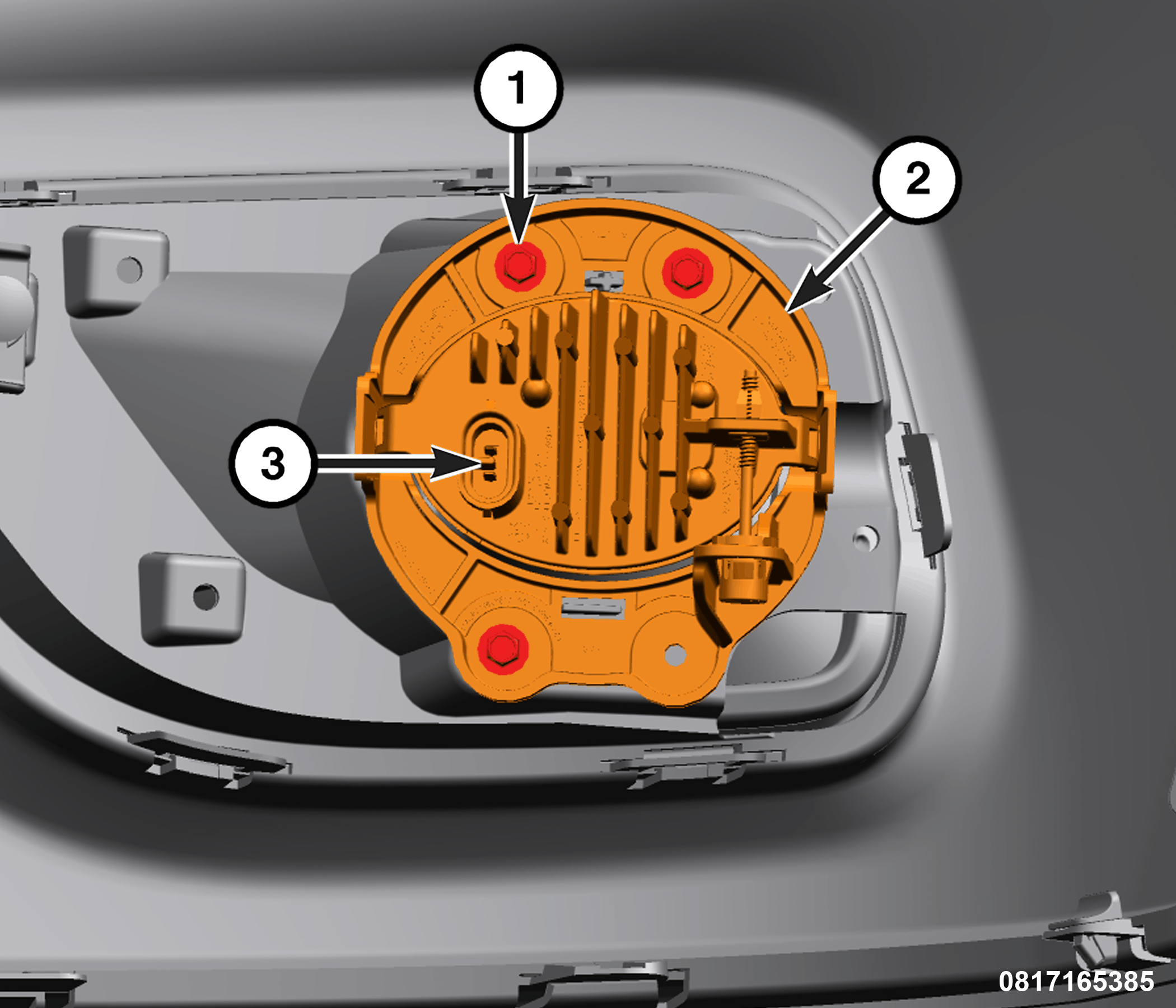

    GC0192214Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the wire harness connector (3) from the back of the fog lamp assembly (2).
  4. Remove the fog lamp assembly fasteners (1).
  5. Remove the fog lamp assembly (2).
