Shield, Splash, Front Wheelhouse: Removal

Courtesy of CHRYSLER GROUP, LLC

1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
2. Remove the wheel from the side of the vehicle being serviced. Refer to REMOVAL .

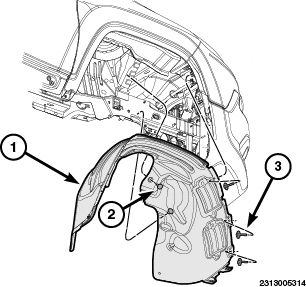

3. Remove the fasteners (3) from the rear area of the splash shield (2).

   Courtesy of CHRYSLER GROUP, LLC

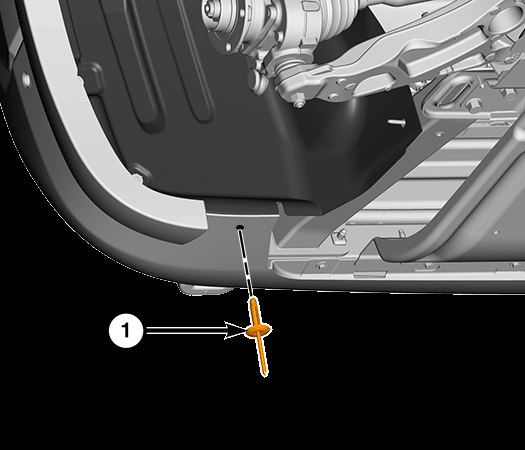

4. On two piece front wheel opening moldings, remove the rivet (1) securing the splash shield to the front fascia.

   Courtesy of CHRYSLER GROUP, LLC

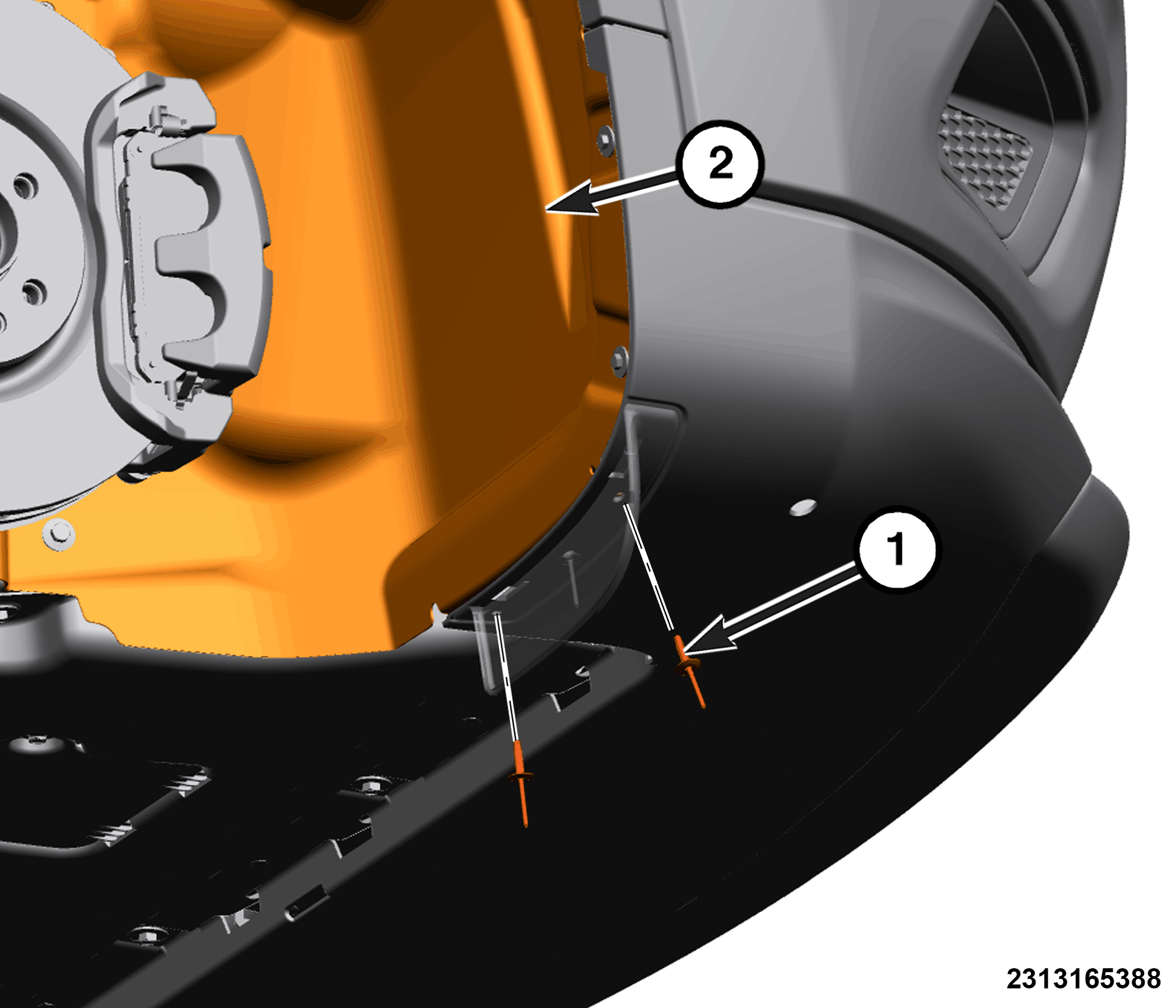

5. On one piece font wheel opening moldings, remove the rivets (1) securing the splash shield (2) to the front fascia.

   Courtesy of CHRYSLER GROUP, LLC

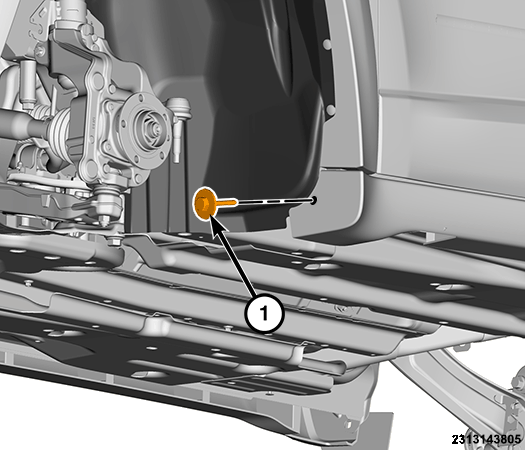

6. Remove the fastener (1) securing the splash shield to the sill trim.

   Courtesy of CHRYSLER GROUP, LLC

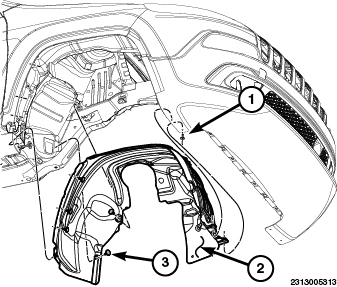

7. Remove the fasteners (2) from the front of the splash shield (1).
8. Remove the fasteners (3) securing the splash shield (1) to the fascia.
9. Release the outboard edge of the splash shield (1) from the fender flange.
10. Remove the splash shield (1) from the vehicle.
