Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
  2. Remove the air cleaner body. Refer to 1 BODY, AIR CLEANER, REMOVAL AND INSTALLATION, 6.7L .
    WARNING:

    Because of high spring pressure, do not attempt to disassemble automatic tensioner. Unit is serviced as an assembly.

  3. Partially remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION, 6.7L .

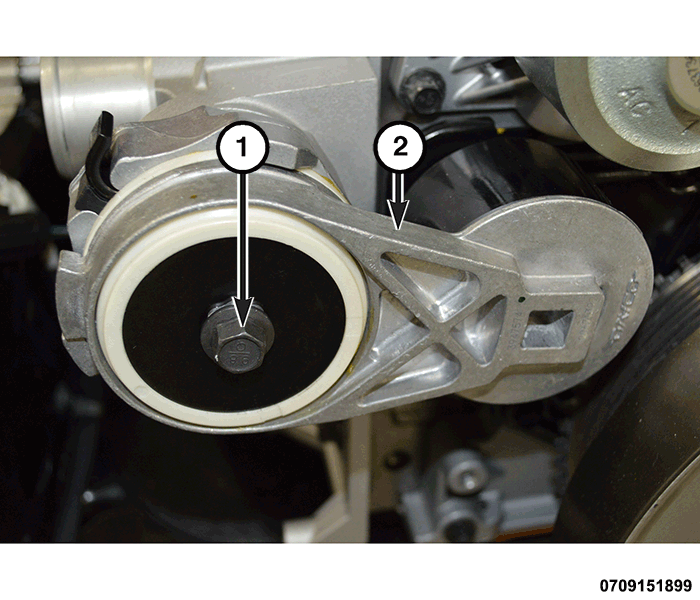

    GC0185295Courtesy of CHRYSLER GROUP, LLC
  4. Remove the bolt (1) and the belt tensioner (2).

INSTALLATION

GC0185295Courtesy of CHRYSLER GROUP, LLC
  1. Align the dowel to hole and install the belt tensioner (2) and tighten bolt (1) to the proper specification. Refer to TORQUE SPECIFICATIONS .
  2. Install the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL AND INSTALLATION, 6.7L .
  3. Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION, 6.7L .
  4. Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
