Removal And Installation

WARNING: This page is about a different car, the 2019 RAM 3500 HD and 2019 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Courtesy of CHRYSLER GROUP, LLC

Fig 1: Belt Routing Diagram - Diesel With Dual Generator

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the negative battery cable(s). Refer to STANDARD PROCEDURE .
Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION, 6.7L .
A 1/2 inch square hole is provided in the automatic belt tensioner (9). Attach a suitable tool into this hole.
Rotate tensioner assembly clockwise (as viewed from front) until tension has been relieved from belt.
Remove the serpentine belt from water pump pulley first.

Courtesy of CHRYSLER GROUP, LLC

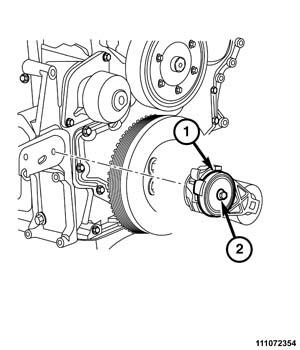

Remove the bolt (2) and the belt tensioner (1).
Remove the serpentine belt from engine.

INSTALLATION

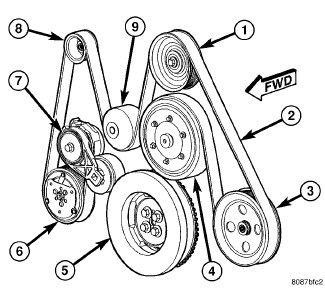

Fig 2: Drive Belt Routing (6.7L)

Courtesy of CHRYSLER GROUP, LLC

1 - IDLER PULLEY

6 - A/C COMPRESSOR PULLEY

2 - ACCESSORY DRIVE BELT

7 - ACCESSORY DRIVE BELT TENSIONER

3 - P/S PULLEY

8 - GENERATOR

4 - RADIATOR FAN PULLEY

9 - WATER PUMP PULLEY

5 - CRANKSHAFT PULLEY

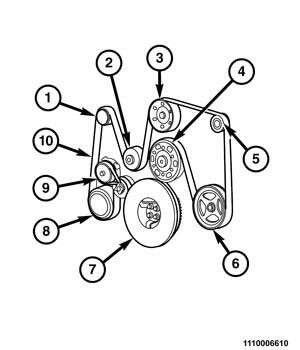

Fig 3: Belt Routing Diagram - Diesel With Dual Generator

Courtesy of CHRYSLER GROUP, LLC

1 - GENERATOR

6 - P/S PULLEY

2 - WATER PUMP

7 - CRANKSHAFT PULLEY

3 - IDLER PULLEY

8 - A/C COMPRESSOR PULLEY

4 - RADIATOR FAN PULLEY

9 - ACCESSORY DRIVE BELT TENSIONER

5 - GENERATOR

10 - ACCESSORY DRIVE BELT

CAUTION:

When installing the accessory drive belt, the belt must be routed correctly. If not, engine may overheat due to water pump rotating in wrong direction.

Install the serpentine belt over all pulleys except water pump pulley.

Courtesy of CHRYSLER GROUP, LLC
Align the dowel to hole and install the belt tensioner (1) in place with the serpentine belt and tighten the bolt (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
Attach a suitable tool to the belt tensioner.
Rotate belt tensioner clockwise and install the serpentine belt over water pump pulley. Let the tensioner rotate back into place and remove the tool. Be sure belt is properly seated on all pulleys.
Install the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION, 6.7L .
Connect the negative battery cable(s). Refer to STANDARD PROCEDURE .
