Rear Fascia: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL .

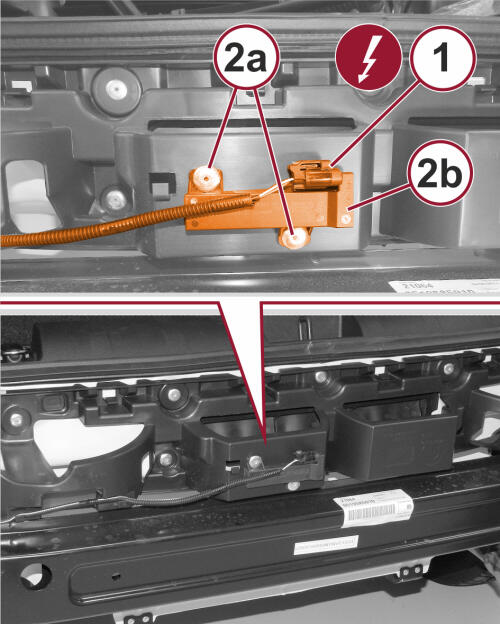

    GC0163618Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect the passive entry antenna (2b) wire harness connector (1).
  4. Remove the rivets (2a) and remove the antenna.
