Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the control unit, connect a scan tool, go to "ABS", then go to the menu "actuators" and start the process of "activating the automatic functions."

Drain the brake fluid. Refer to STANDARD PROCEDURE .
Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL .
Remove the rubber dust shield from the Integrated Control Unit (ICU).

Courtesy of CHRYSLER GROUP, LLC

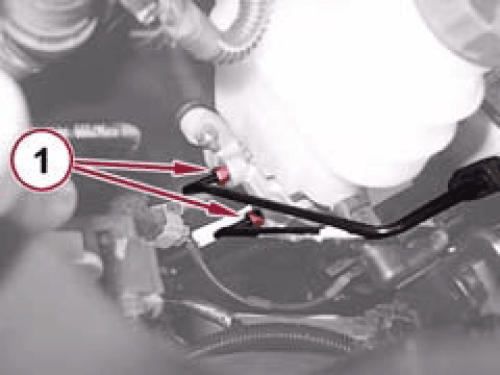

Remove the primary and secondary brake tubes (1) from the Hydraulic Control Unit (HCU).

Courtesy of CHRYSLER GROUP, LLC

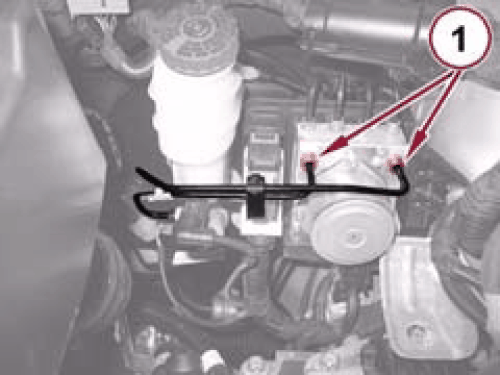

Remove the primary and secondary brake tubes (1) from the master cylinder.

Courtesy of CHRYSLER GROUP, LLC

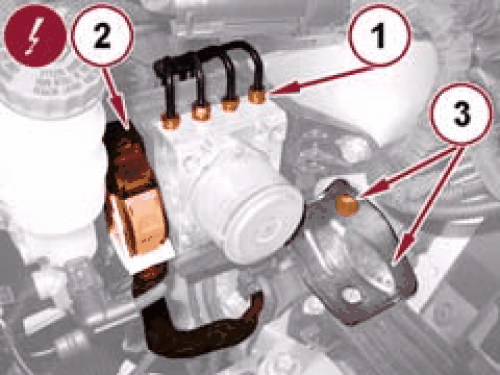

Disconnect the Integrated Control Unit (ICU) electrical connector (2).
Remove the brake tubes (1) from the HCU.

Courtesy of CHRYSLER GROUP, LLC

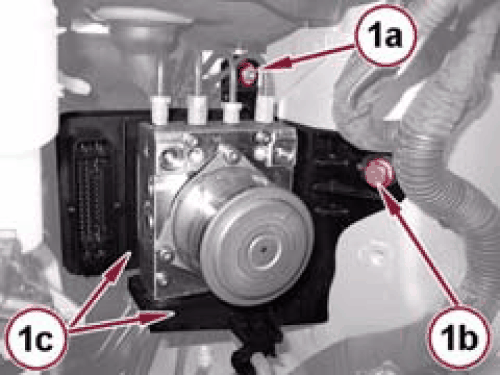

Remove the fastener (1a) and fastener (1b). Loosen the fastener (not pictured) which is located below and to the rear of the ICU bracket. Remove the assembly from the vehicle.

Courtesy of CHRYSLER GROUP, LLC

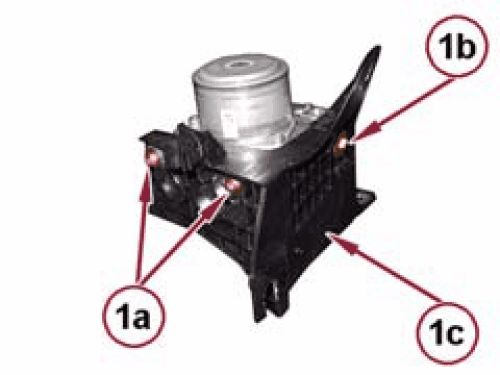

To remove the ICU bracket, remove fasteners (1a) and (1b), and separate the ICU from the bracket (1c).
If necessary to remove the Anti-lock Brake System (ABS) Module. Refer to MODULE, ANTI-LOCK BRAKE SYSTEM (ABS), REMOVAL AND INSTALLATION .
