Washer Reservoir: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

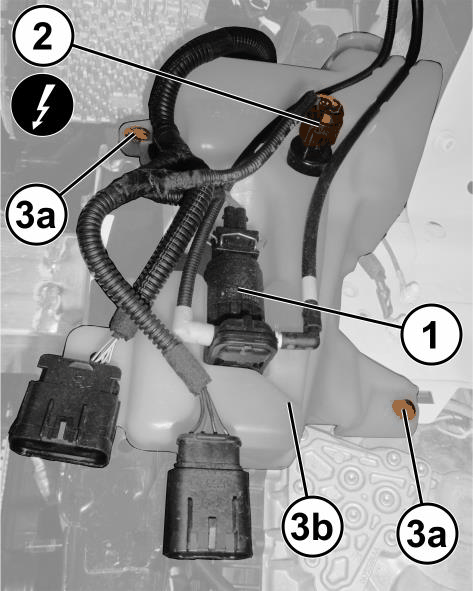

GC0189625Courtesy of CHRYSLER GROUP, LLC
  1. Position the washer reservoir (3b) to the left front support structure of the vehicle.
  2. Align the reservoir mounting tabs with the mounting holes on the outboard side of the left front support structure.
  3. Install two new blind rivets (3a) to secure the reservoir to the outboard side of the left front support structure.
  4. Lubricate a new rubber grommet seal/filter screen with clean washer fluid and install it into the washer pump mounting hole in the washer reservoir. Always use a new rubber grommet seal/filter screen on the reservoir.
  5. Install the washer pump/motor unit (1) into the reservoir. Refer to PUMP, WINDSHIELD WASHER, INSTALLATION  .
  6. Install the washer low fluid sensor and the connection (2).
  7. Install the fasteners to secure the left front wheel house splash shield to the front bumper fascia.
  8. Remove the support and lower the vehicle.
  9. Install the filler neck onto the washer reservoir. Refer to FILLER NECK, INSTALLATION  .
  10. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  11. Fill the washer reservoir with the washer fluid drained from the reservoir during the removal procedure.
