Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position transmission cooler lines in vehicle.
  2. Install transmission cooler line at transmission fittings. Refer to TRANSMISSION COOLER LINE QUICK CONNECT FITTING DISASSEMBLY/ASSEMBLY  .
  3. Install transmission cooler lines at transmission oil cooler. Refer to TRANSMISSION COOLER LINE QUICK CONNECT FITTING DISASSEMBLY/ASSEMBLY  .
    GC0169422Courtesy of CHRYSLER GROUP, LLC

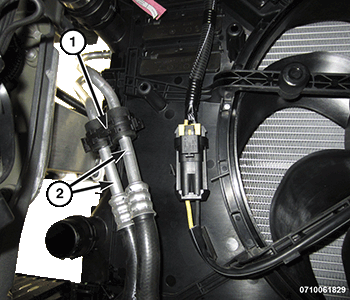

  4. Secure the transmission oil cooler lines (2) to the routing clip (1) at the radiator fan shroud.
  5. Check transmission fluid level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
  6. Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
