Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat. Refer to THERMOSTAT, REMOVAL  .

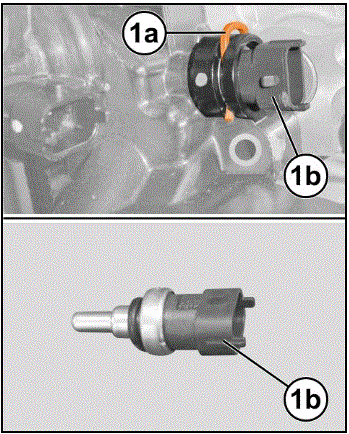

    G00588868Courtesy of CHRYSLER GROUP, LLC
  2. Retract the clip (1a) and remove the engine coolant temperature sensor (1b).
