Water Pump Body: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  3. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  4. Drain the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .
  5. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .
  6. Remove the intake manifold. Refer to MANIFOLD, INTAKE, REMOVAL AND INSTALLATION .
  7. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL  .

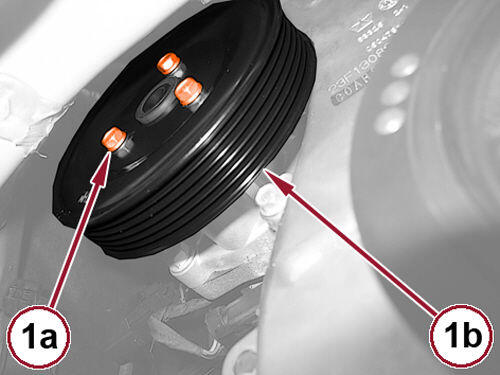

    GC0165902Courtesy of CHRYSLER GROUP, LLC
  8. Remove the bolts (1a) and the water pump pulley (1b).

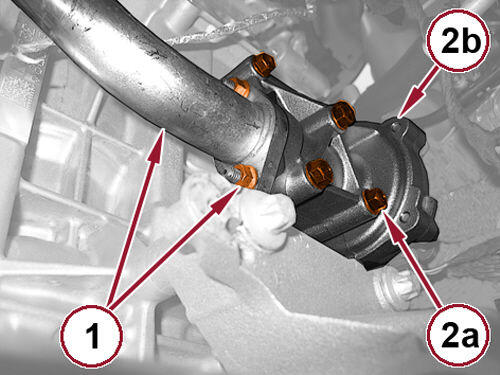

    GC0165881Courtesy of CHRYSLER GROUP, LLC
  9. Remove the nuts (1) securing the coolant tube to the water pump body (2b).
  10. Remove the bolts (2a) and the water pump body (2b).
  11. Remove and DISCARD  the gasket.

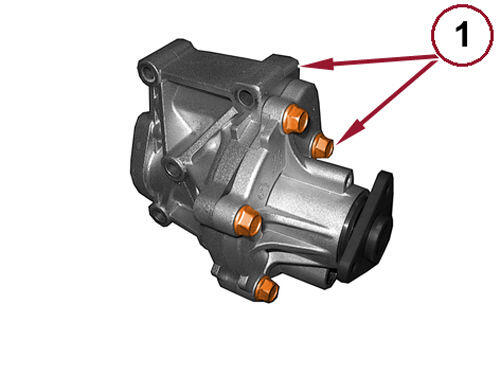

    GC0166167Courtesy of CHRYSLER GROUP, LLC
  12. If necessary, remove the bolts (1) and the water pump.
