Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the right front tire and wheel assembly. Refer to REMOVAL .
  3. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  4. Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  5. Drain the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .
  6. Remove the serpentine belt. Refer to BELT, SERPENTINE, REMOVAL  .
    GC0165902Courtesy of CHRYSLER GROUP, LLC
  7. Remove the water pump pulley bolts (1a) and the pulley (1b).

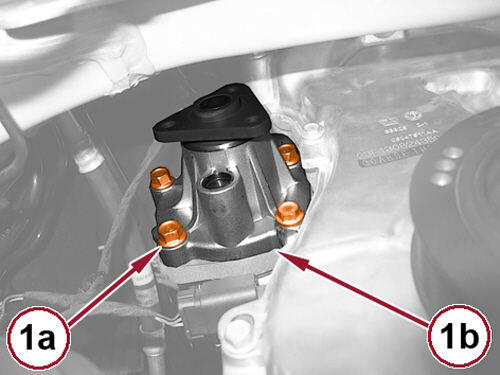

    GC0163921Courtesy of CHRYSLER GROUP, LLC
  8. Remove the water pump bolts (1a), the pump (1b), and the gasket.
  9. Inspect the water pump housing for impeller contact.
  10. Clean the water pump mounting surface.
