Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

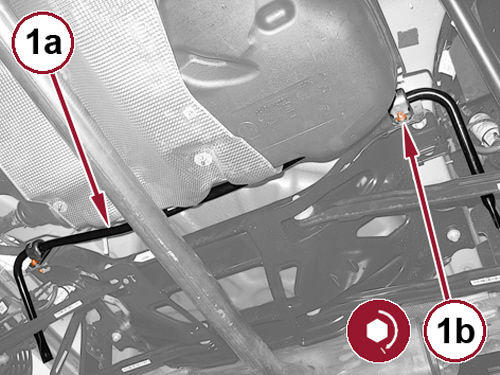

- Position the rear stabilizer bar (1a) in the vehicle.
- Install the stabilizer bar bracket bolts (1b) and tighten the stabilizer bar bracket bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

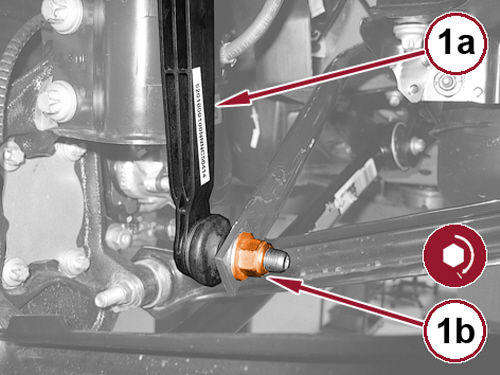

- Install the sway bar link into the stabilizer bar, and tighten the NEW
sway bar link to stabilizer bar nut (1b) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .NOTE:
Perform the same procedure on the opposite side.
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
