Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
- Install the trailing link to the body bracket (2) and install the trailing link to body bracket bolt (1). DO NOT TIGHTEN AT THIS TIME.

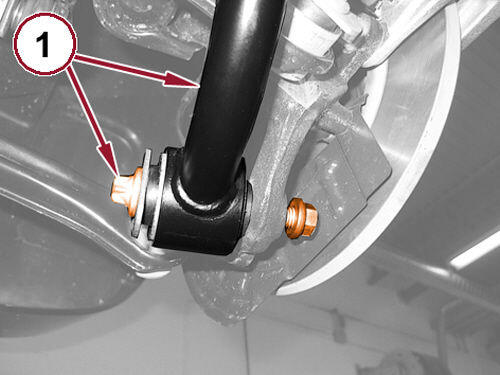

- Install the trailing link to the knuckle and install the trailing link to knuckle bolt (1). DO NOT TIGHTEN AT THIS TIME.
- With a suitable jack raise the rear suspension to the proper specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS
.

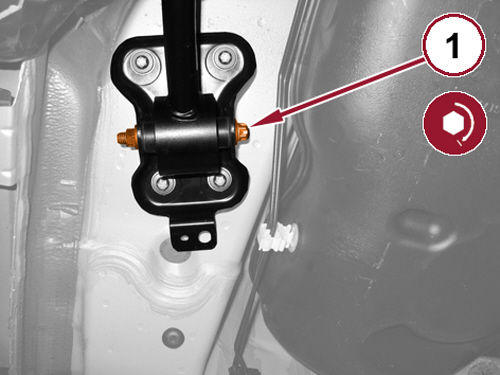

- Tighten the trailing link to body bracket bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

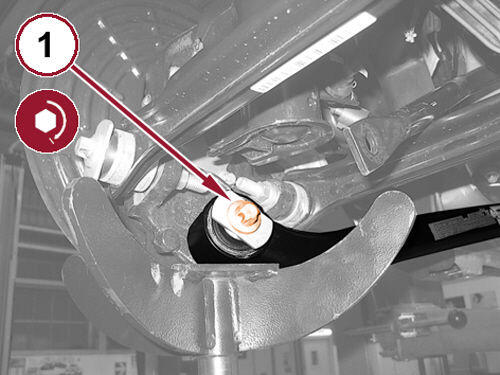

- Tighten the trailing link to knuckle bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
- Install the tire and wheel assembly. Refer to INSTALLATION .
- Remove the support and lower the vehicle.
- Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
