Removal And Installation: 4X4: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0166028Courtesy of CHRYSLER GROUP, LLC

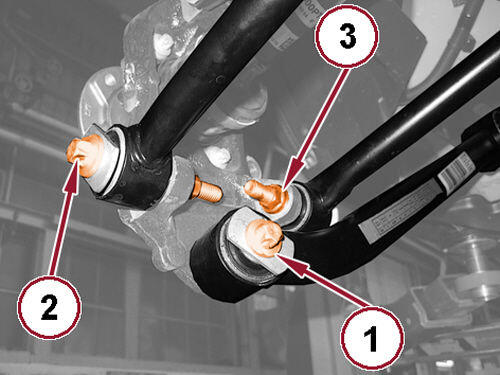

  1. Position the rear knuckle to the front and rear lower control arms and the rear trailing link. Install the fasteners (1, 2, 3), but DO NOT TIGHTEN AT THIS TIME.
  2. Position a support jack under the rear knuckle.
    GC0163844Courtesy of CHRYSLER GROUP, LLC
  3. Using the support jack, position the rear knuckle (1) to the proper specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .
    GC0164956Courtesy of CHRYSLER GROUP, LLC

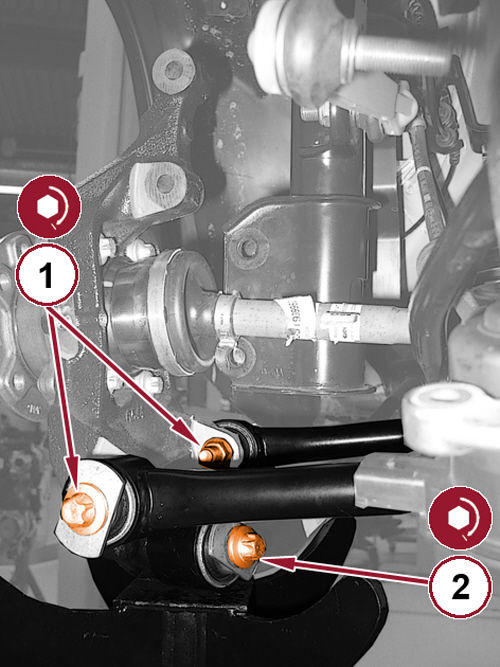

  4. Tighten the NEW  front lower control arm fastener (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  5. Tighten the rear lower control arm fastener (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Tighten the rear trailing link fastener (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0166058Courtesy of CHRYSLER GROUP, LLC

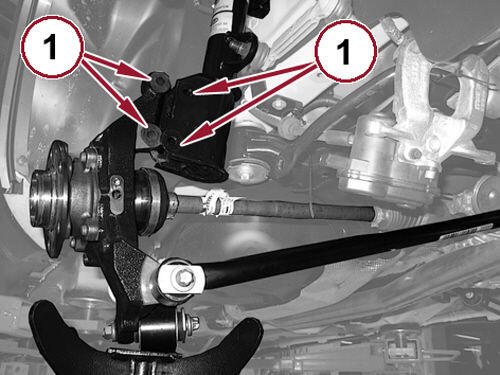

  7. Position the support jack until the rear knuckle and rear strut lower mounting holes are aligned. Install the rear strut lower fasteners (1).
    GC0163517Courtesy of CHRYSLER GROUP, LLC

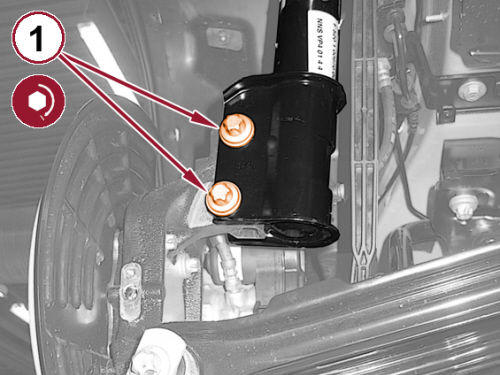

  8. Tighten the rear strut lower fasteners (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0166141Courtesy of CHRYSLER GROUP, LLC

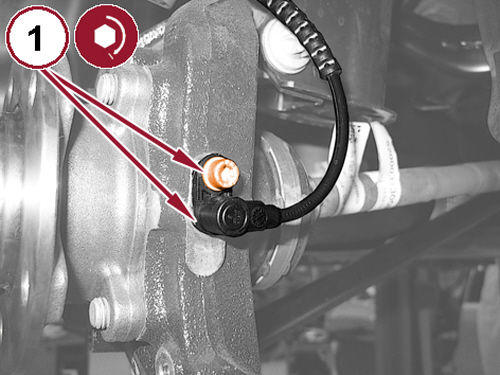

  9. Install the wheel speed senor (1) to the rear knuckle. Install and tighten the wheel speed sensor fastener (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  10. Install the rear hub and bearing assembly. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .
  11. Align the brake rotor shield to the rear knuckle.
  12. Install the brake rotor shield fasteners and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  13. Install the rear brake rotor. Refer to ROTOR, BRAKE, REAR, INSTALLATION .
  14. Install the tire and wheel assembly. Refer to INSTALLATION .
  15. Remove the support jack and lower the vehicle.
  16. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
