Removal And Installation: 4X2: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

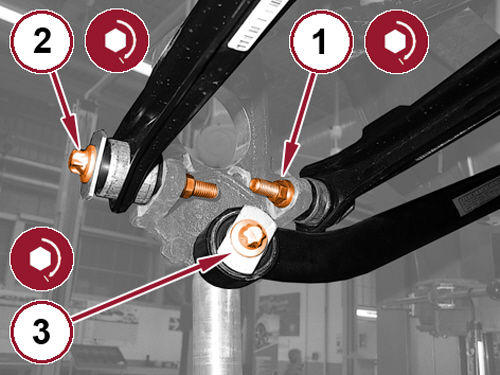

Position the rear knuckle to the front and rear lower control arms and the rear trailing link. Install the bolts (1, 2, 3), but DO NOT TIGHTEN AT THIS TIME.
Position a support jack under the rear knuckle.

Courtesy of CHRYSLER GROUP, LLC
Using the support jack, position the rear knuckle (1) to the proper specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

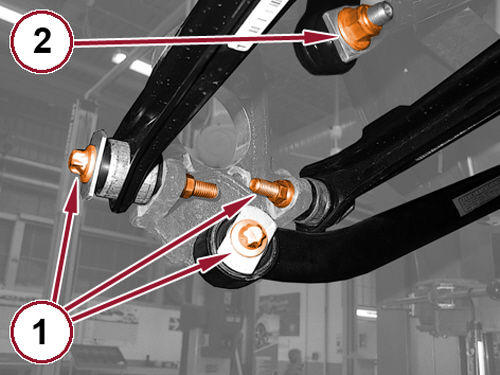

Tighten the NEW front lower control arm bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Tighten the rear lower control arm bolt (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Tighten the rear trailing link bolt (3) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

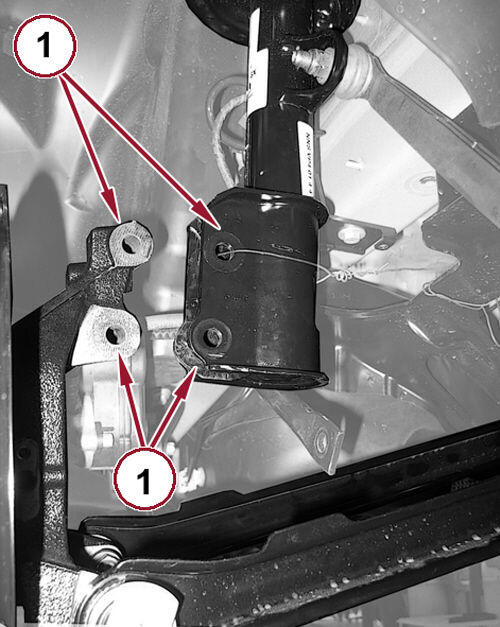

Position the support jack until the rear knuckle and rear strut lower mounting holes are aligned. Install the rear strut lower bolts (1).

Courtesy of CHRYSLER GROUP, LLC
Tighten the rear strut lower bolts (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Install the rear hub and bearing assembly. Refer to HUB AND BEARING, REMOVAL AND INSTALLATION .
Align the brake rotor shield to the rear knuckle.
Install the brake rotor shield bolts and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
Install the tire and wheel assembly. Refer to INSTALLATION .
Remove the support jack and lower the vehicle.
Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
