Removal And Installation: 4X4: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
GC0165532Courtesy of CHRYSLER GROUP, LLC

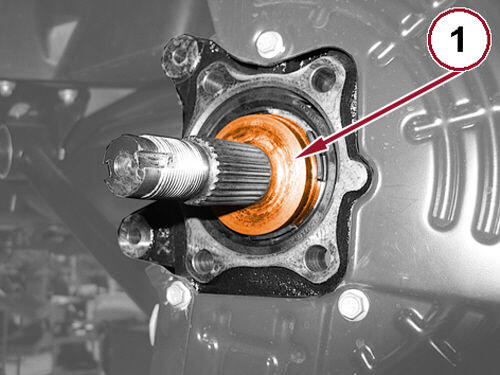

  1. Verify sure the dust cover (1) is mounted correctly to the CV joint.
    GC0163655Courtesy of CHRYSLER GROUP, LLC
  2. Position the hub and bearing to the knuckle.

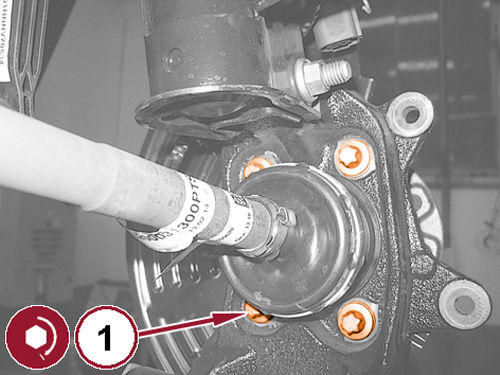

  3. Press the halfshaft inboard slightly and install the hub and bearing bolts (1). Tighten the hub and bearing to knuckle bolts to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0163237Courtesy of CHRYSLER GROUP, LLC

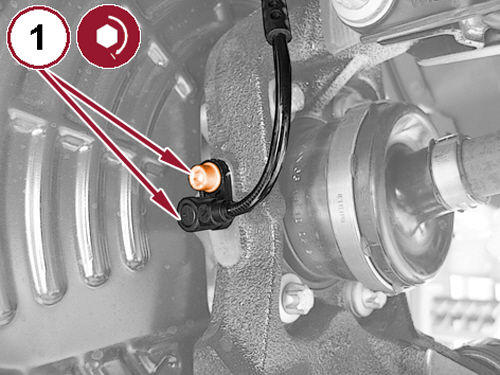

  4. Install the wheel speed sensor (1) to the knuckle. Install and tighten the wheel speed sensor to knuckle bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0165542Courtesy of CHRYSLER GROUP, LLC

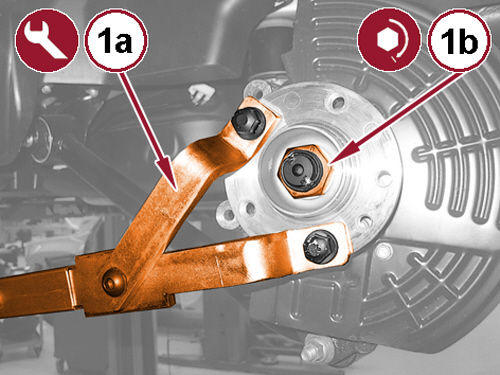

  5. Install the special tool 1870815000 (1a), and a NEW  hub nut (1b) then tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0165942Courtesy of CHRYSLER GROUP, LLC

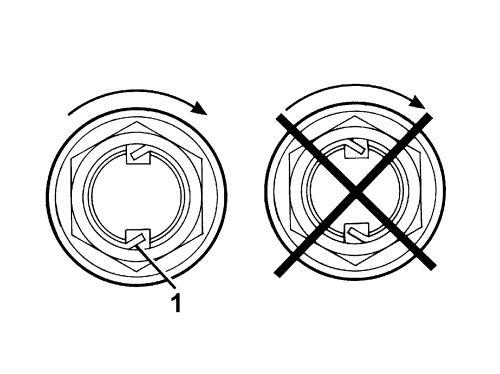

  6. Stake the hub nut (1) as shown.
  7. Install the rear brake rotor. Refer to ROTOR, BRAKE, REAR, INSTALLATION .
  8. Install the tire and wheel assembly. Refer to INSTALLATION .
  9. Remove the support and lower the vehicle.
