Removal And Installation: Front: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

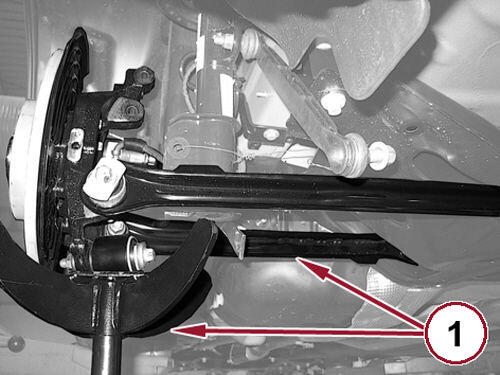

GC0163844Courtesy of CHRYSLER GROUP, LLC
  1. With a suitable jack raise the rear suspension to the proper specification. Refer to WHEEL ALIGNMENT, TECHNICAL SPECIFICATIONS .

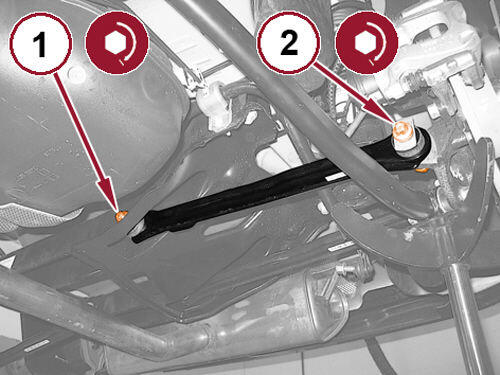

    GC0164314Courtesy of CHRYSLER GROUP, LLC
  2. Position the front lower control arm into the vehicle.
  3. Install the front lower control arm to crossmember bolt (1).
  4. Install a NEW  front lower control arm to knuckle bolt (2).
  5. Tighten the front lower control arm to crossmember bolt (1) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  6. Tighten the NEW  front lower control arm to knuckle bolt (2) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  7. Install the tire and wheel assembly. Refer to INSTALLATION .
  8. Remove the support and lower the vehicle.
  9. Perform a wheel alignment. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
