Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL .

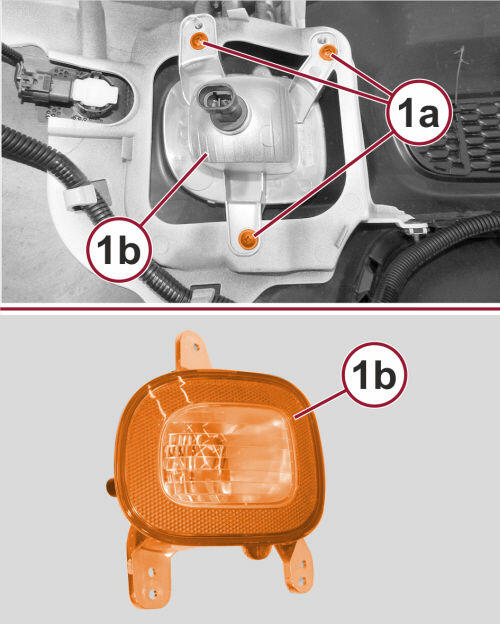

    GC0163313Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (1a) and remove the backup lamp (1b).
