Removal And Installation: 1.3L: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery tray. Refer to TRAY, BATTERY, REMOVAL .
  2. Remove the air cleaner body. Refer to BODY, AIR CLEANER, REMOVAL AND INSTALLATION .

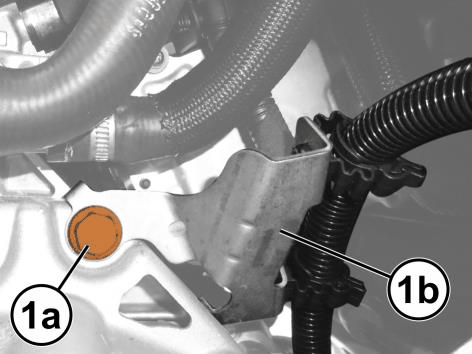

    GC0190298Courtesy of CHRYSLER GROUP, LLC
  3. Remove the upper starter bolt (1a) and position wire harness bracket (1b) aside.
  4. Raise and support the vehicle.
  5. Remove the belly pan. Refer to BELLY PAN, REMOVAL .
  6. Remove the splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
  7. If 4X4/AWD equipped, remove the axle shaft. Refer to FRONT, REMOVAL AND INSTALLATION and REAR, REMOVAL AND INSTALLATION .

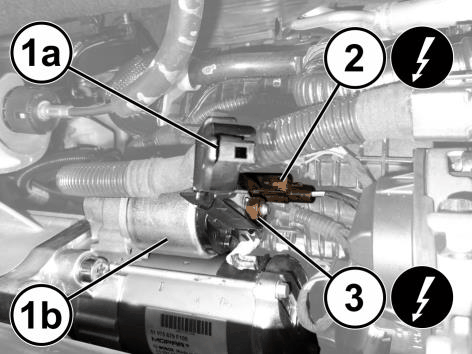

    GC0208207Courtesy of CHRYSLER GROUP, LLC
  8. Release the protective cover (1a) from the starter B+ wire harness connection.
  9. Disconnect the starter motor wire harness connector (2).
  10. Remove the nut (3) and disconnect the B+ electrical connection from the start motor (1b).

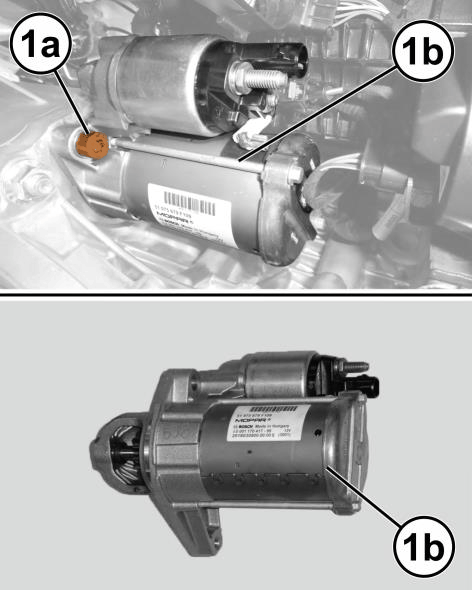

    GC0189274Courtesy of CHRYSLER GROUP, LLC
  11. Remove the lower starter bolt (1a).
  12. Remove the starter (1b).
