Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

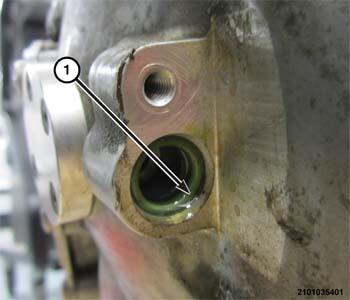

- Install a NEW
differential end O-Ring seal (1).
- Install a NEW
oil supply tube O-Ring (1).
- Install the oil supply tube (2) onto transmission.
- Install the oil supply tube bolts (1 and 3) and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Install the left front tire and wheel assembly. Refer to REMOVAL AND INSTALLATION .
- Fill the transmission to the proper level with the correct fluid. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
