Park Detent And Manual Shaft Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

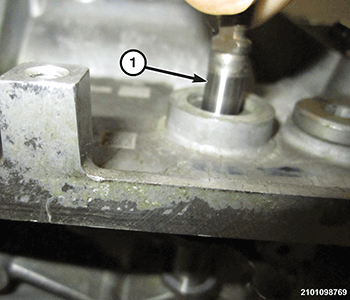

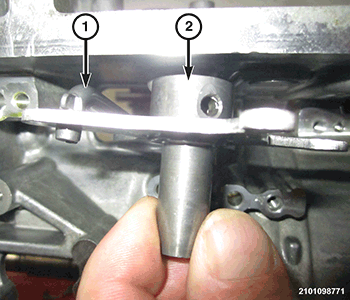

- Insert the and park rod (1) into the park rod guide and the detent hub (2) into the transmission.NOTE:
Shown with park rod removed for clarity.

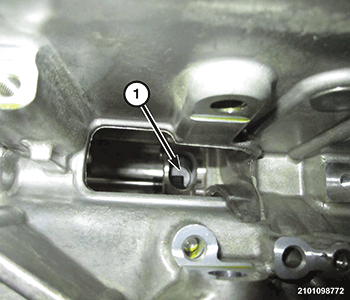

- The park rod must go into the park rod guide opening (1).

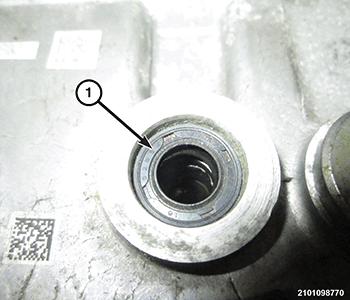

- Inspect the condition of the manual shaft seal (1), replace if necessary.
- Insert the manual shaft (1) into the transmission housing and the detent hub and align the roll pin holes in the detent hub and the manual shaft.

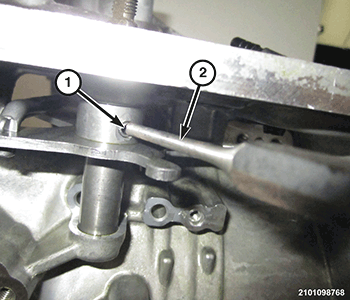

- Install the roll pin (1) with a suitable pin punch (2) until flush with the detent hub.

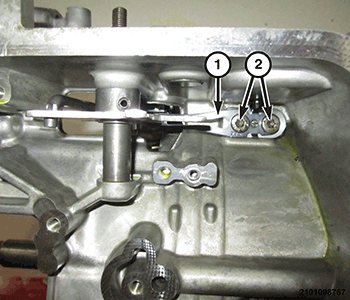

- Position the detent spring (1) and tighten the screws (2) to the proper specification. Refer to TORQUE SPECIFICATIONS .
- Place the manual lever in position on the manual lever shaft.
- Install the nut to hold the manual shift lever to the manual shaft and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .

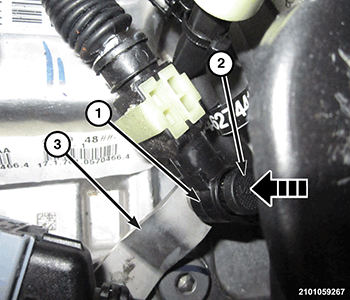

- Hold the release button (2) down while attaching the shifter cable end (1) to the manual lever (3).
- Install the valve body into the transmission. Refer to VALVE BODY, REMOVAL AND INSTALLATION .
