Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the stabilizer bar link to the front strut.

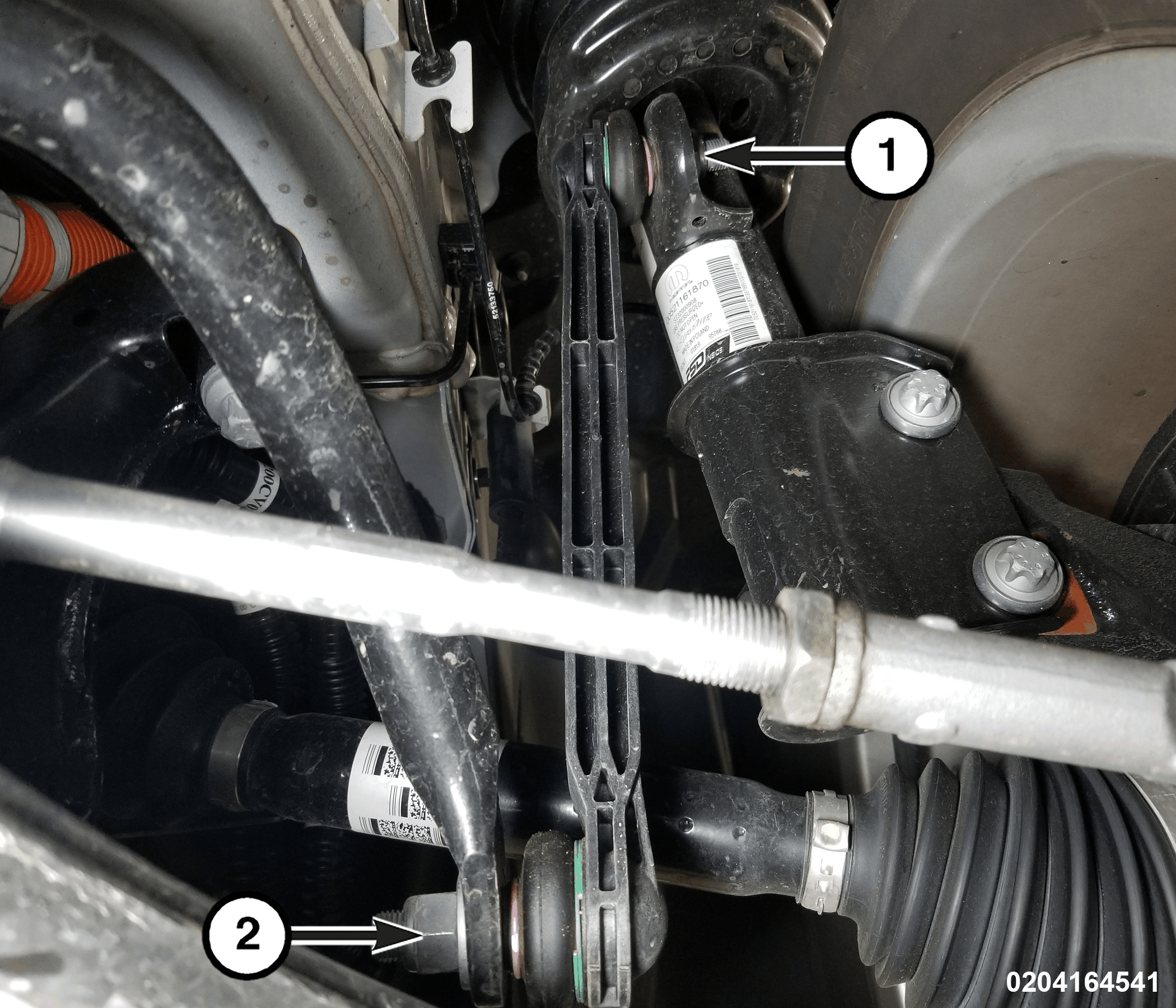

    GC0190933Courtesy of CHRYSLER GROUP, LLC
  2. Install the NEW  stabilizer bar link to strut bolt (1) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  3. Install the stabilizer bar link to the stabilizer bar.
  4. Install the NEW  stabilizer bar link to stabilizer bar bolt (2) and tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
  5. Install the tire and wheel assembly. Refer to INSTALLATION .
  6. Remove the support and lower the vehicle.
