Without Intermediate Shaft: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Never handle the halfshaft assembly by the inner or outer boots. This can cause damage to the boot, which will allow contaminants to enter the Constant Velocity (CV) joint.

Position the halfshaft into the differential and wheel hub.

Courtesy of CHRYSLER GROUP, LLC

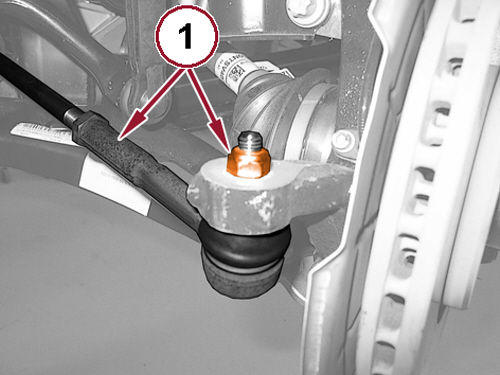

Connect the tie rod end to the steering knuckle and tighten the NEW nut (1) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

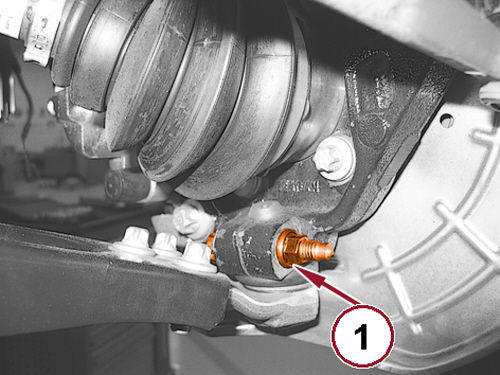

Position the ball joint stud into the steering knuckle and tighten the NEW bolt (1) to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .
NOTE:
Always install a NEW hub nut. The original hub nut is one time use only and must be discarded when removed.
Using special tool 1870815000, install a NEW hub nut, tighten to the proper specification. Refer to FRONT, TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Do not use air tools on staking tool while staking hub nut.

NOTE:
The hub nut must be staked so that it looks similar to the illustration. Both edges must be split and bent into the shape shown (3). The staking must be opposite of the direction to tighten the nut.
Stake the hub nut as shown.
Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
Install the tire and wheel assembly. Refer to INSTALLATION .
Check and correct the transmission fluid level. Refer to FLUID AND FILTER, STANDARD PROCEDURE .
