With Intermediate Shaft: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Never handle the halfshaft assembly by the inner or outer boots. This can cause damage to the boot, which will allow contaminants to enter the Constant Velocity (CV) joint.

  1. Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
  2. Remove the tire and wheel assembly. Refer to REMOVAL .
  3. Remove the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
    GC0165594Courtesy of CHRYSLER GROUP, LLC

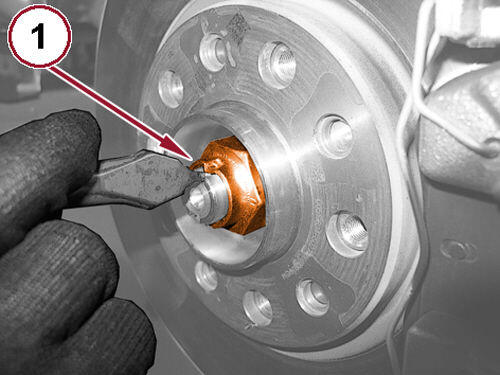

  4. Using a suitable punch, lift the two staked areas in the hub nut (1) to avoid damaging the halfshaft.
    GC0163784Courtesy of CHRYSLER GROUP, LLC

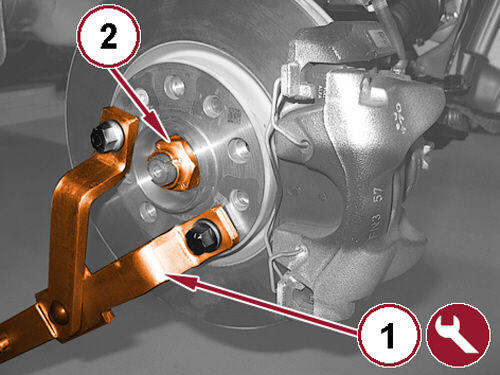

  5. Install special tool 1870815000 (1) to the brake disc.
    NOTE:

    The used hub nut is not reusable.

  6. Remove the hub nut (2) from the halfshaft and DISCARD  .
    GC0163970Courtesy of CHRYSLER GROUP, LLC
  7. Remove and DISCARD  the tie rod end nut (1).
    GC0163969Courtesy of CHRYSLER GROUP, LLC
  8. Using special tool 1871000700 (EMEA) or (special tool #C-4150A, Press, Ball Joint) (NAFTA) (1a), disconnect the tie rod (1b) from the steering knuckle.
    GC0162979Courtesy of CHRYSLER GROUP, LLC
  9. Remove and DISCARD  the ball joint fastener (1).
    NOTE:

    Use care when separating the ball joint stud from the knuckle so the ball joint boot does not get cut.

  10. Disengage the ball joint from the steering knuckle.
    GC0163376Courtesy of CHRYSLER GROUP, LLC
  11. Remove the disc brake rotor retaining pin (1).
    GC0164806Courtesy of CHRYSLER GROUP, LLC

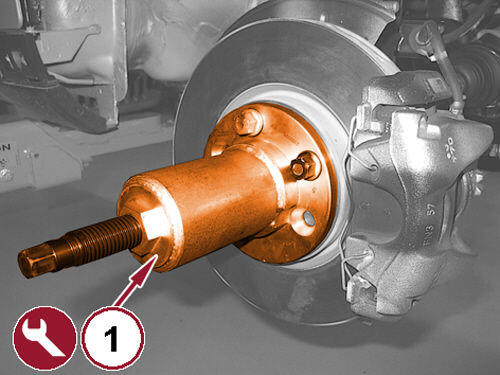

  12. Disengage the halfshaft from the wheel hub using special tool 2000001600 (1) and position the knuckle and rotor assembly aside.
  13. Remove the tool, install the disc brake rotor retaining pin and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS .
    GC0165191Courtesy of CHRYSLER GROUP, LLC

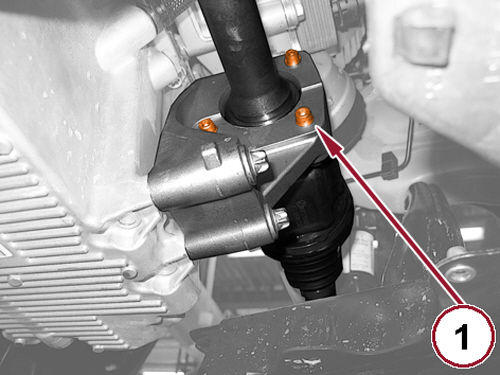

  14. Remove fasteners (1) mounting the intermediate shaft bearing to the bearing support.
    GC0163457Courtesy of CHRYSLER GROUP, LLC

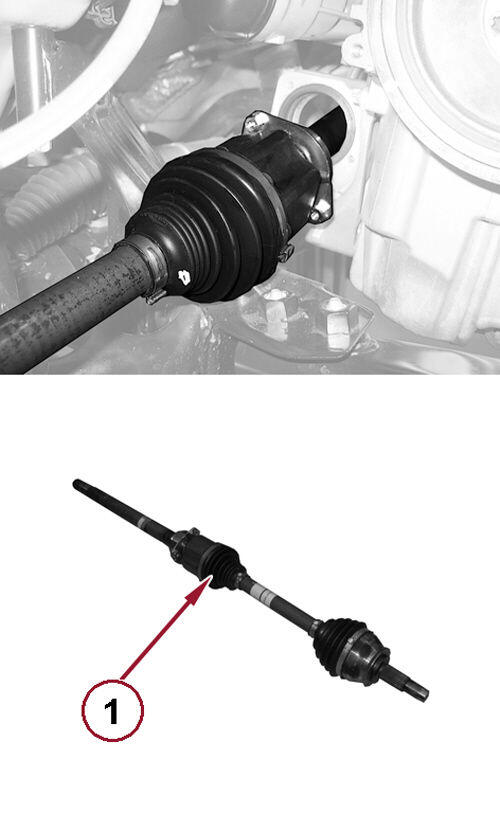

  15. Remove the halfshaft with the intermediate shaft (1) from the vehicle.
