Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.
RIGHT SIDE
- Remove the belly pan. Refer to BELLY PAN, REMOVAL .
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL .

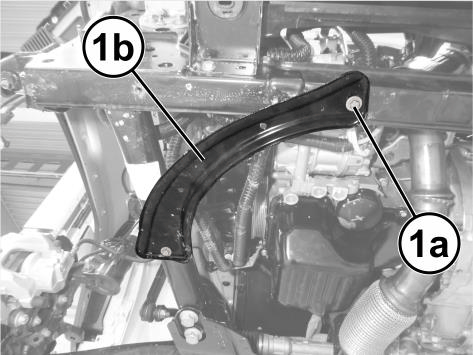

- Remove the bolts (1a) and remove the bracket (1b) connecting the front end to the front panel/strut.
- Remove the bolts (1) attaching the pedestrian impact crossmember.

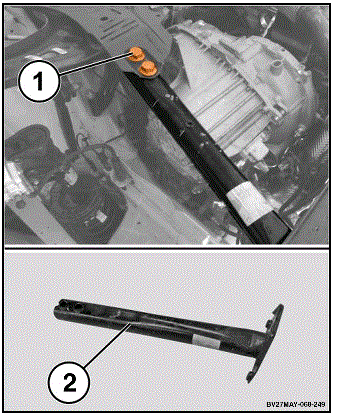

- Remove the bolts (1) attaching the load beam (2) to the suspension crossmember and remove it.
LEFT SIDE
- Remove the belly pan. Refer to BELLY PAN, REMOVAL .
- Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL
.

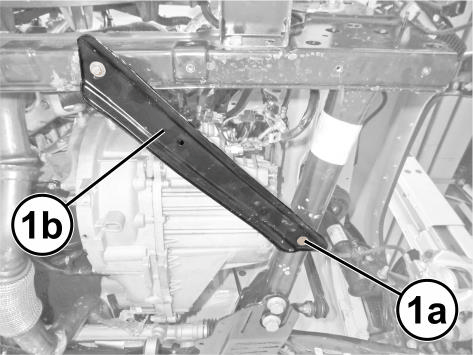

- Remove the bolts (1a) and remove the bracket (1b) connecting the front end to the front panel/strut.
- Remove the bolts (1) attaching the pedestrian impact crossmember to the lower load beam.

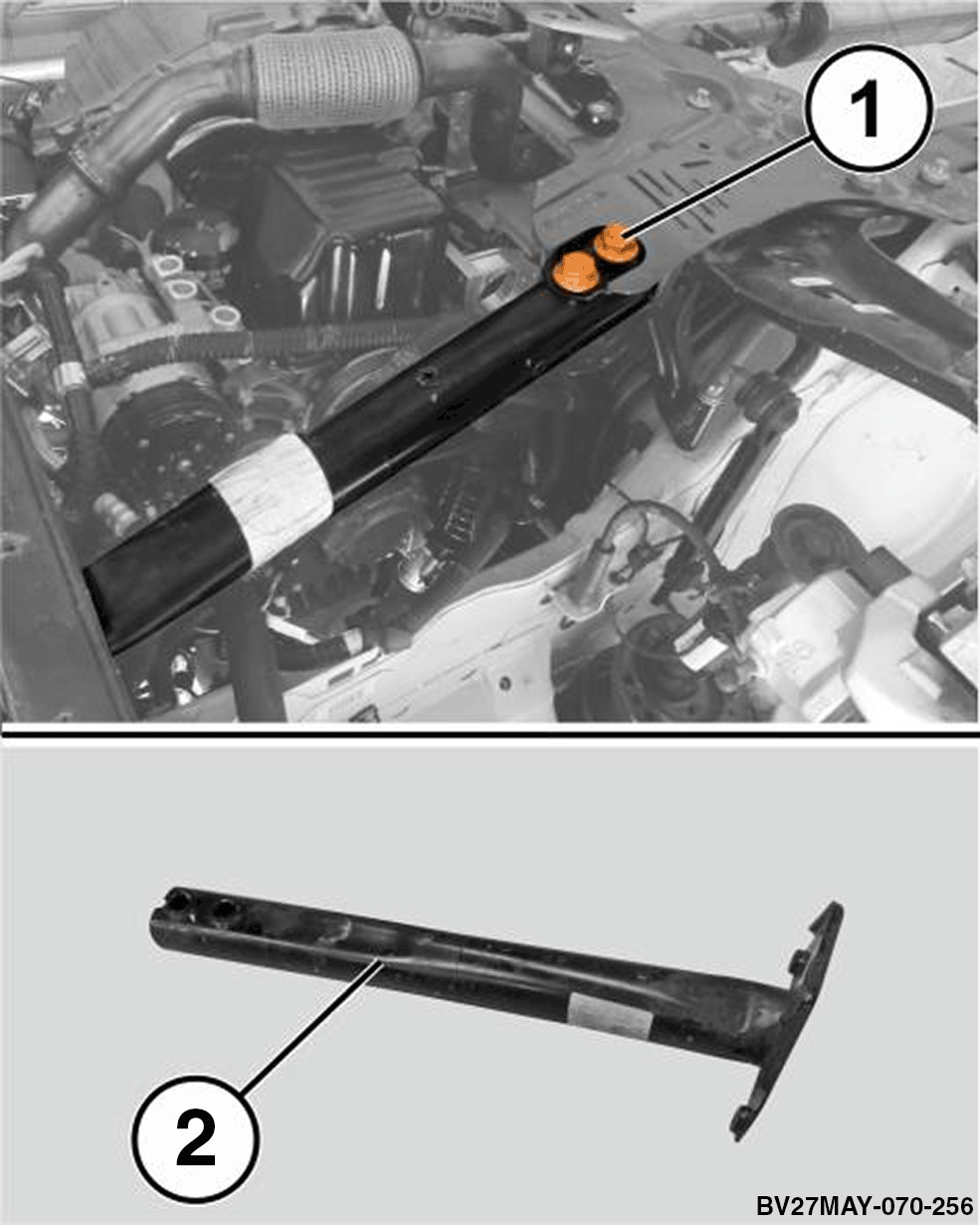

- Remove the bolts (1) attaching the load beam (2) to the suspension crossmember and remove it.
