Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

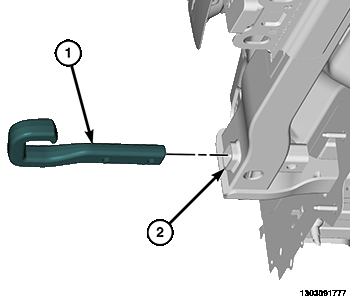

GC0188484Courtesy of CHRYSLER GROUP, LLC
  1. Install the tow hook (1) into the bumper/hitch assembly (2).

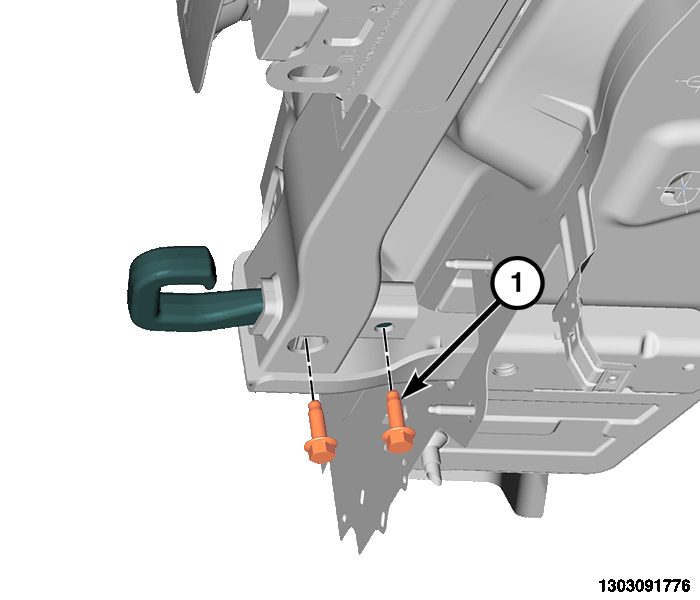

    GC0188429Courtesy of CHRYSLER GROUP, LLC
  2. Install the bolts (1) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
  3. Install the rear fascia. Refer to FASCIA, REAR, INSTALLATION  .
