Removal And Installation: Installation

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

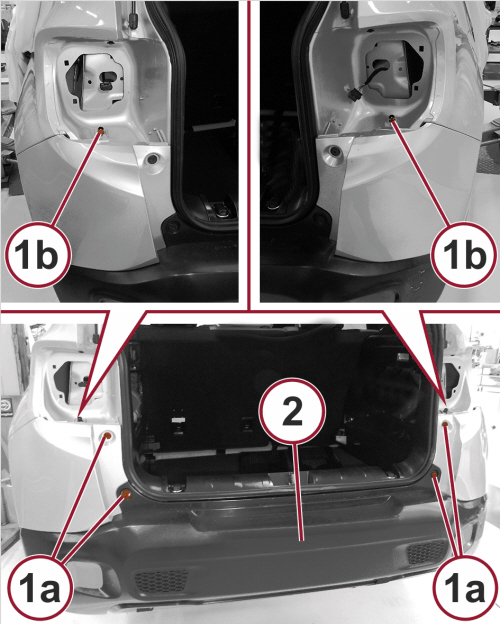

GC0165228Courtesy of CHRYSLER GROUP, LLC
  1. Position the rear fascia (2) and install the screws (1a and 1b). Tighten the screws securely.

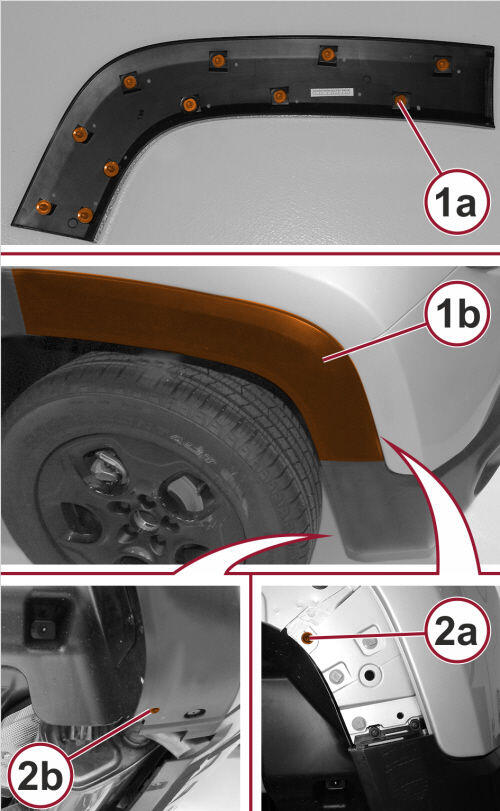

    GC0165115Courtesy of CHRYSLER GROUP, LLC
  2. Install the screws (2a and 2b) on both sides of the rear fascia. Tighten the screws securely.
  3. Position the rear wheel molding (1b) and hand tap to engage the retaining clips (1a).

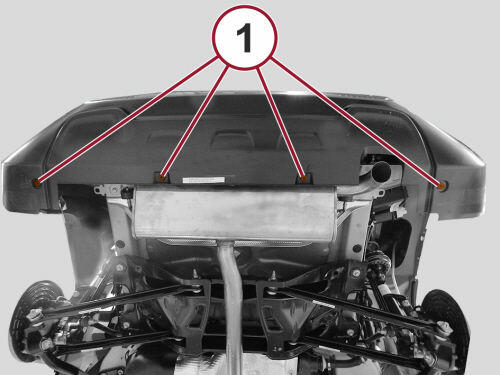

    GC0164421Courtesy of CHRYSLER GROUP, LLC
  4. Install the screws (1) at the bottom of the rear fascia and tighten securely.
  5. Install the tail lamps. Refer to LAMP, TAIL, INSTALLATION .
  6. Connect the negative battery cable.
