Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

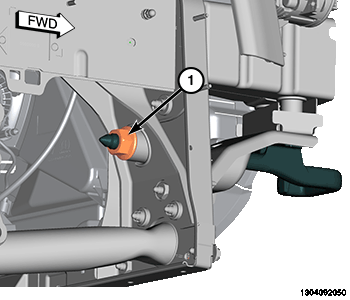

GC0188401Courtesy of CHRYSLER GROUP, LLC
  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL  .
  2. Remove the nut (1).

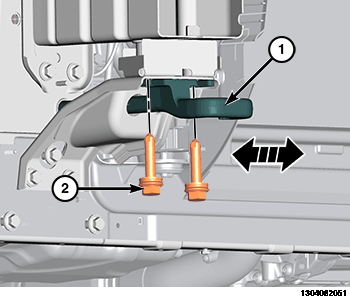

    GC0188491Courtesy of CHRYSLER GROUP, LLC
  3. Remove the bolts (2) and remove the tow hook (1).
