Removal - 1.3L

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

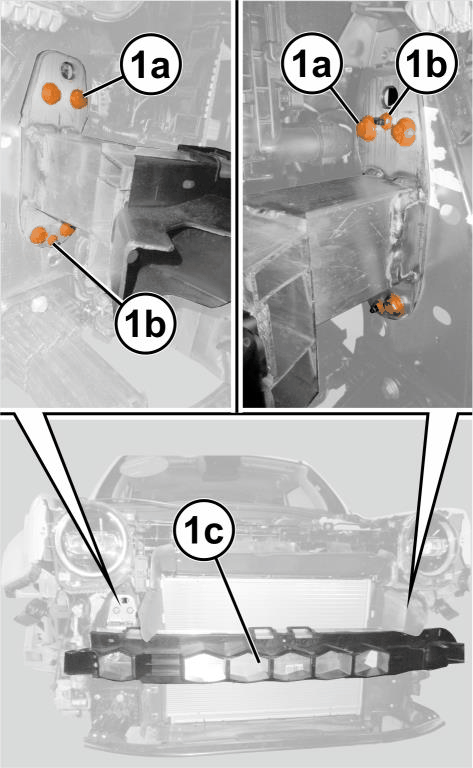

GC0189734Courtesy of CHRYSLER GROUP, LLC

REMOVAL

  1. Remove the front fascia. Refer to FASCIA, FRONT, REMOVAL  .
  2. Remove the fasteners (1a) and (1b) and remove the bumper reinforcement (1c).
