Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

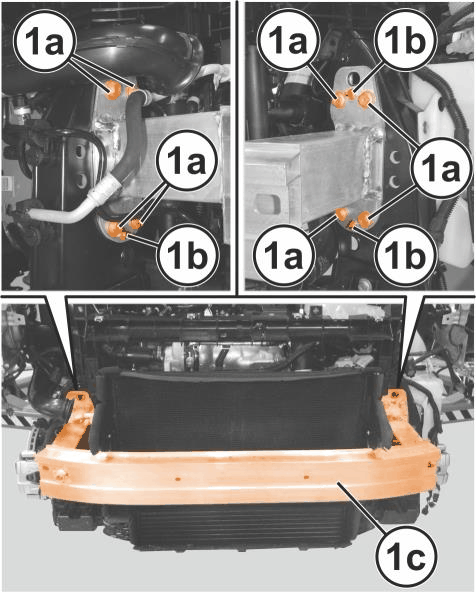

- Install the bumper (1c).
- Install the nuts (1b) and the bolts (1a) and tighten to the proper specification. Refer to TECHNICAL SPECIFICATIONS .

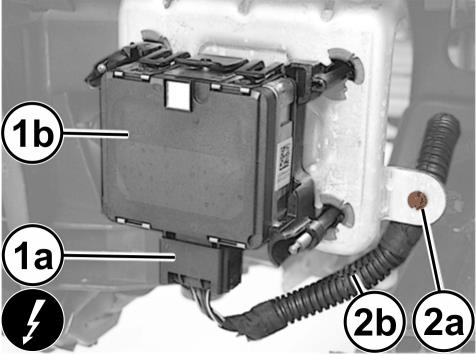

- Connect the wire harness connector (1a) of the radar (1b).
- Secure the retainer (2a) of the wiring (2b).
- Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
