Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

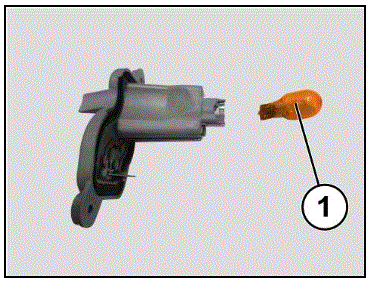

- Install the bulb (1) into the holder.

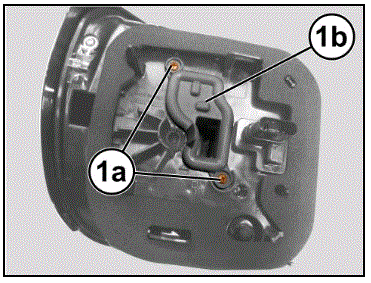

- If removed, install the bulb holder (1b) and securely tighten the fasteners (1a) to the tail lamp assembly.

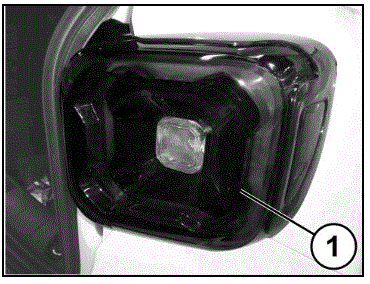

- Position the tail lamp assembly (1) to the body for installation.

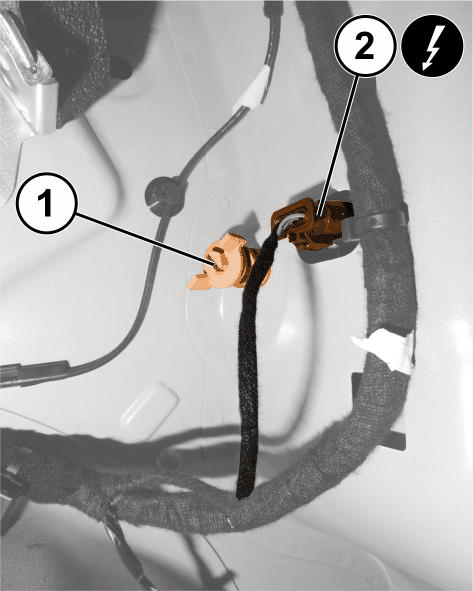

- Secure the tail lamp assembly by installing the fastener (1) then connect the wire harness connector (2).

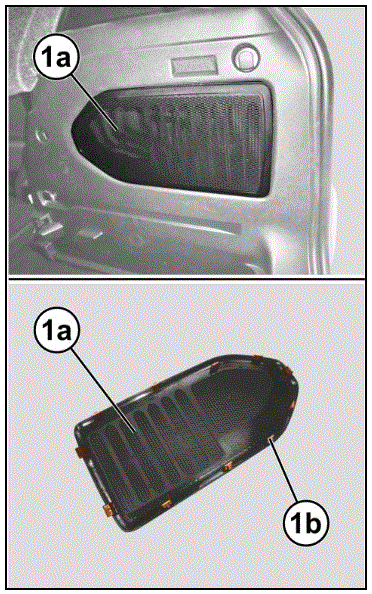

- If equipped with access trim cover (1a), position the cover and engage the internal retainers (1b).

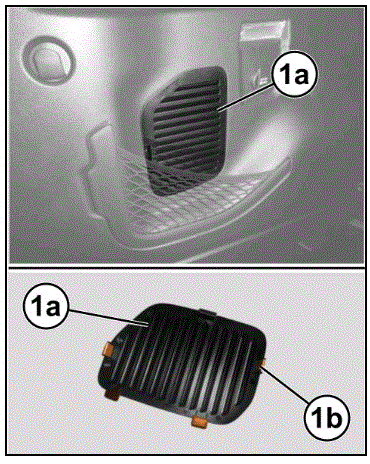

- If equipped with access cover (1a), position the cover and engage the internal retainers (1b).
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
