Disassembly And Assembly: Disassembly

WARNING: This page is about a different car, the 2020 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

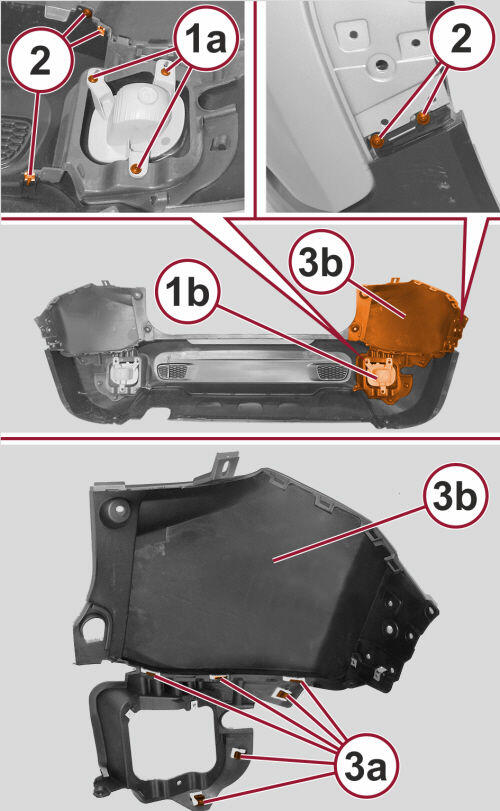

GC0164722Courtesy of CHRYSLER GROUP, LLC
  1. Remove the rear fascia. Refer to FASCIA, REAR, REMOVAL  .
  2. Remove the rear fog lights. Refer to REAR FOG LAMP, REMOVAL .
  3. Remove the screws (1a) and remove the reflector (1b).
  4. Remove the screws (2).
  5. Separate the retainers (3a) and remove the fascia extensions (3b).
